| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | SAFEGAS |
| Chứng nhận: | CEP |
| Số mô hình: | AQD5000 |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | Negotiate |
| chi tiết đóng gói: | thùng carton |
| Thời gian giao hàng: | 10 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 300 miếng mỗi tháng |
| Phương pháp lấy mẫu: | Bơm hút | Tốc độ dòng bơm: | 0,5L/phút (khí); 1,8L/phút (hạt/bụi) |
|---|---|---|---|
| Cách giám sát: | Giám sát thời gian thực tự động liên tục | Màn hình hiển thị: | Màn hình cảm ứng màu 7 inch |
| Chế độ hiển thị: | Số kênh hiển thị thích ứng, chuyển trang tự động | Đầu ra tín hiệu: | RS485、relay、4G DTU (không cần thiết)、LORA (không cần thiết), vv |
| Nhiệt độ làm việc: | -10℃～55℃ | Độ ẩm làm việc: | 0-95%RH, Độ ẩm tương đối |
| Loại báo động: | Báo động âm thanh và ánh sáng (tùy chọn) | Trọng lượng sản phẩm: | 18kg |
| Làm nổi bật: | High Resolution Ambient Air Quality Monitoring System,Real-time Monitoring Multi Gas Detector,Outdoor Use Air Quality Monitoring System |
||

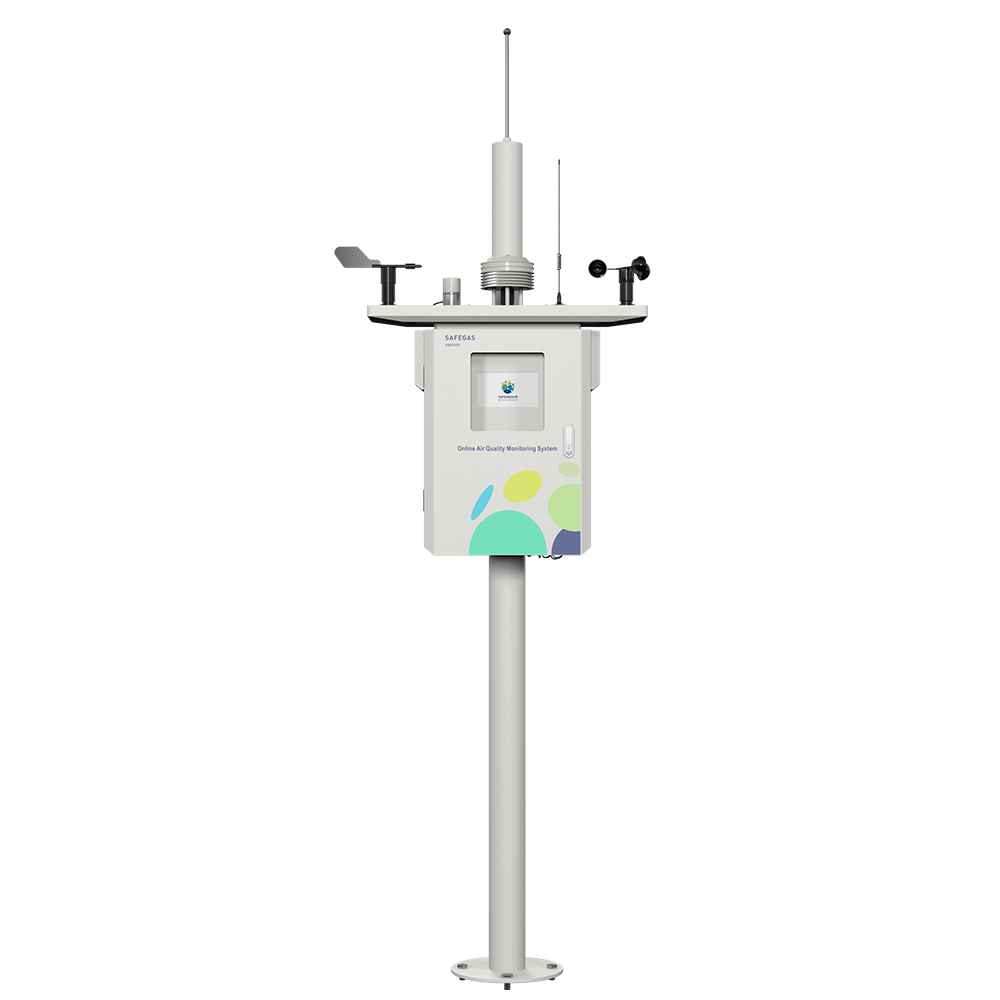

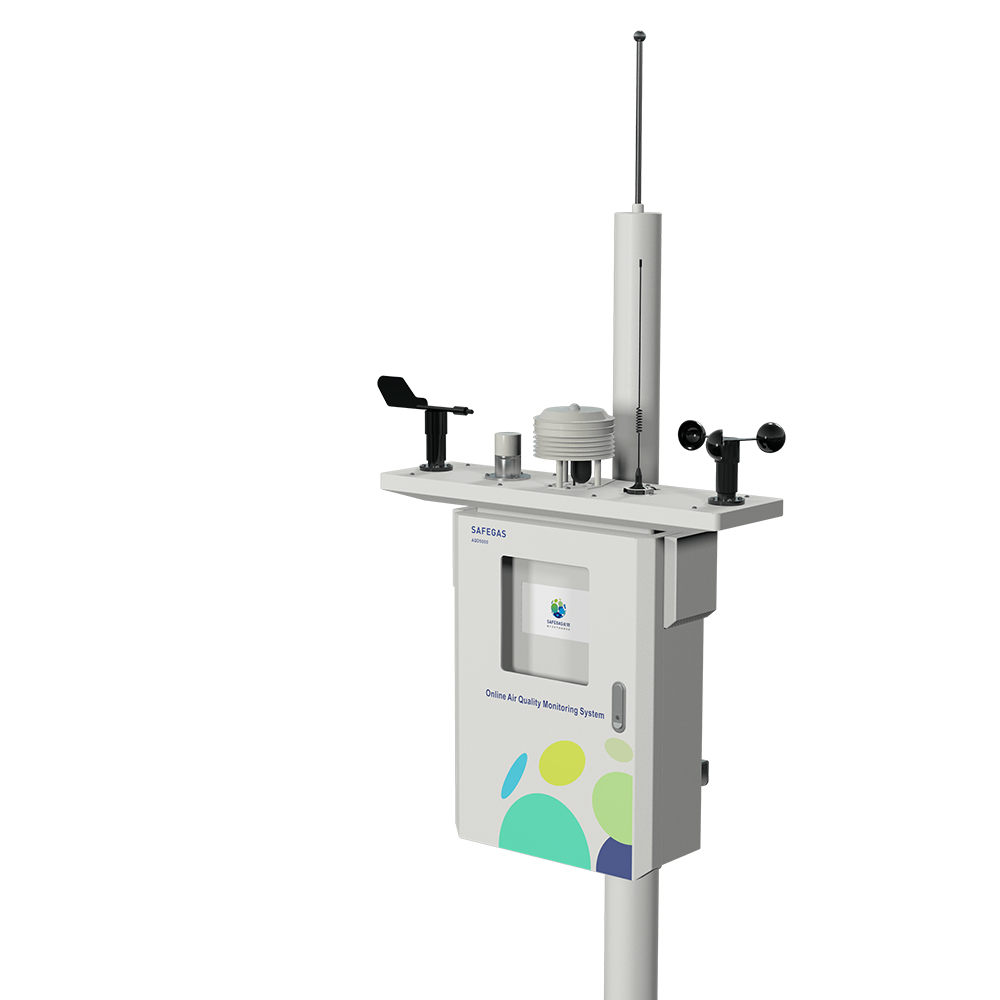

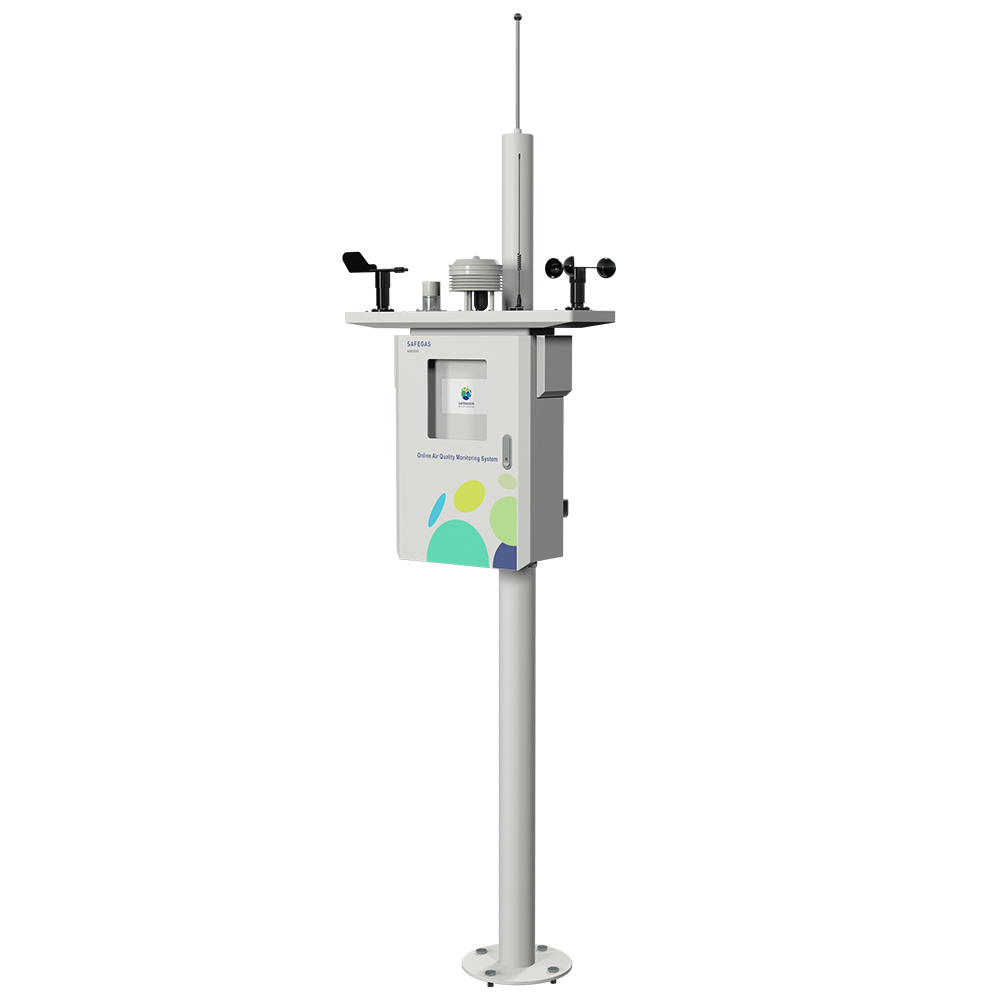

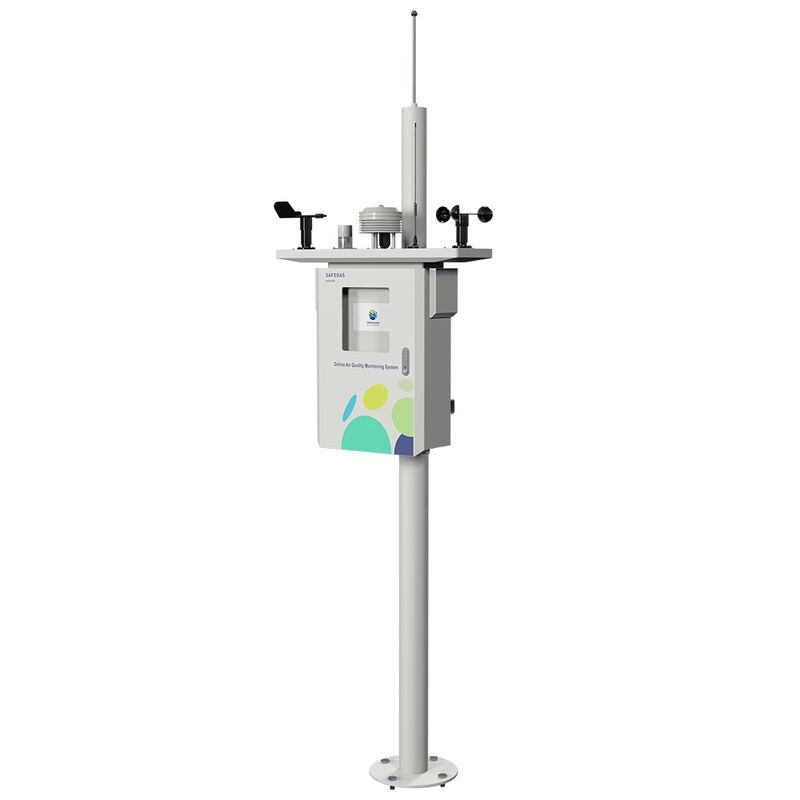

Professional system for detecting gas concentration with high resolution, designed for industrial outdoor use.
The AQD5000 is a new generation of intelligent low-cost monitoring equipment, ideal for environmental monitoring departments conducting comprehensive air quality assessments. This advanced system is widely deployed for urban air quality monitoring and industrial emission pollution tracking.
The system simultaneously measures multiple environmental pollution gases, particulate matter, and meteorological parameters. It features RS485 signal transmission with data storage and export capabilities. Through wireless acquisition terminals, measurement data is transmitted to cloud platforms in real-time, enabling remote control and monitoring.
| Gas Parameters |
Measured Parameters: Ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC, etc. Measuring Range: 0-1000ppb, 0-1000ppb, 0-1000ppb, 0-5ppm, 0-20ppm, 0-5ppm Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm, 0.001ppm, 0.001ppm Measuring Principle: Electrochemical, infrared, PID photo ionization Detection Accuracy: ±3% Response Time: ≤30S |
| Particle Parameters |
Measured Parameters: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP, etc. Measuring Range: 0-1000ug/m³, 0-5000ug/m³ Resolution: 1ug/m³ Measuring Principle: Laser principle Response Time: ≤30S |
| Meteorological Parameters |
Measured Parameters: Temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise, etc. Measuring Range: -40°C~+120°C, 0~99%RH, 0~20m/s, 8 directions, 0~120Kpa, 0~200,000 Lux, 30dB~130dB Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 piece, 1 Kpa, 1Lux, 1dB Measuring Principle: Thermocouple, mechanical principles |
| Output Signal | RS485, relay, 4G DTU (optional), LORA (optional), etc. |
| Sampling Method | Pump suction |
| Pump Flow Rate | 0.5L/min (gas); 1.8L/min (particles/dust) |
| Display | 7-inch color touch screen |
| Power Supply | 220VAC, 0.1A |
| Working Current | <100mA (Max) |
| Operating Conditions | Temperature: -10℃～55℃; Humidity: 0-95%RH (non-condensing) |
| Alarm Type | Sound and light alarm (optional) |
| Product Dimensions | 480*580*163mm (Excluding external sensors, rainproof beams, and mounting brackets) |

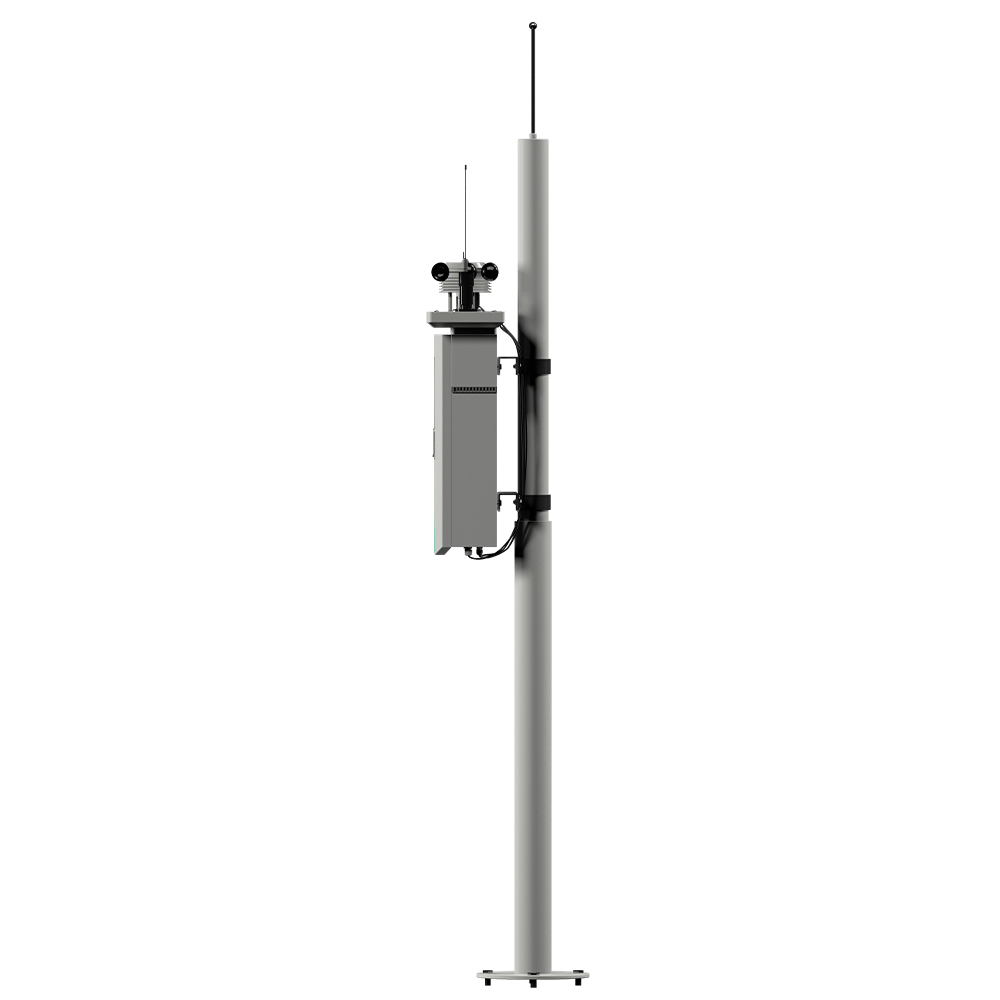

| Installation | Ceiling or wall-mounted |
| Weight | 18kg |
| Warranty | 12 months |
The AQD5000 model can detect 1-9 different gases simultaneously, providing comprehensive air quality analysis.
As a professional gas detector manufacturer, we maintain complete control over the entire process from design and R&D through production and sales, ensuring consistent product quality.
Our R&D department brings 25 years of gas detection industry expertise, providing professional technical after-sales service.
Core components including ICs and sensors utilize imported brands (Honeywell, CITY, Alpha) for enhanced accuracy, extended service life, and reliable customer safety protection.
