| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | Safegas |
| Chứng nhận: | ATEX/EX |
| Số mô hình: | SKY2000 |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | thùng carton |
| Thời gian giao hàng: | 3 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 100 miếng/ngày |
| Phạm vi đo: | 0-1000 µg/m³ | Nghị quyết: | 1 µg/m³ |
|---|---|---|---|
| Phát hiện hạt: | PM10 & PM2.5 | Xếp hạng bảo vệ: | IP66 |
| chống cháy nổ: | Ex ia II CT4 | Phương pháp hút: | Bơm hút |
| Ngôn ngữ điều hành: | Tiếng Trung / Tiếng Anh (chuyển đổi một phím) | Chế độ báo động: | Âm thanh, ánh sáng, rung động |
| Nhiệt độ hoạt động: | -20 ~ +50 | Độ ẩm hoạt động: | 0 – 90% RH |
| Mức độ bảo vệ: | IP66 |

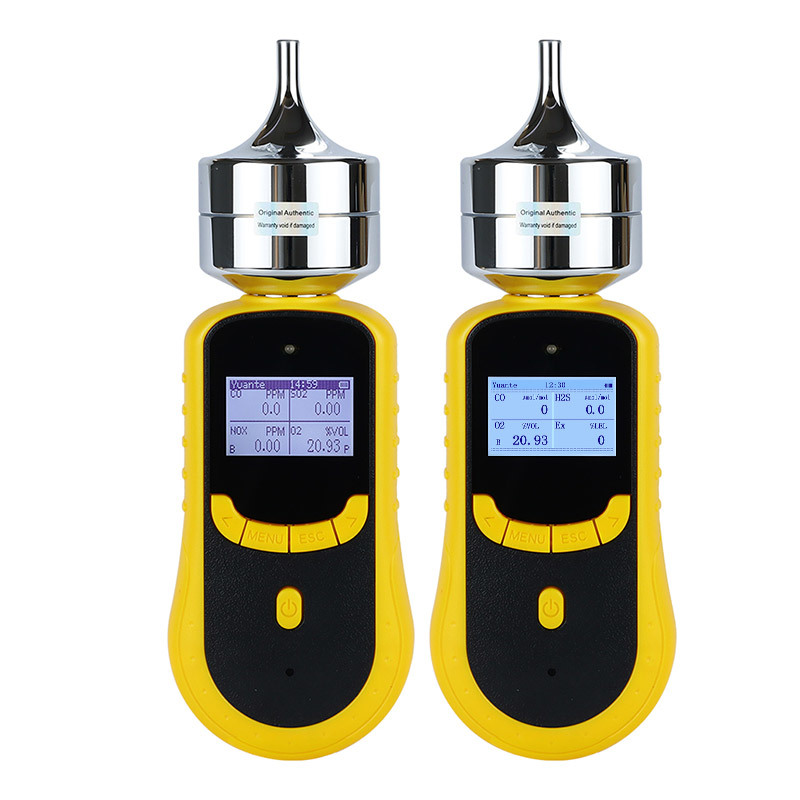

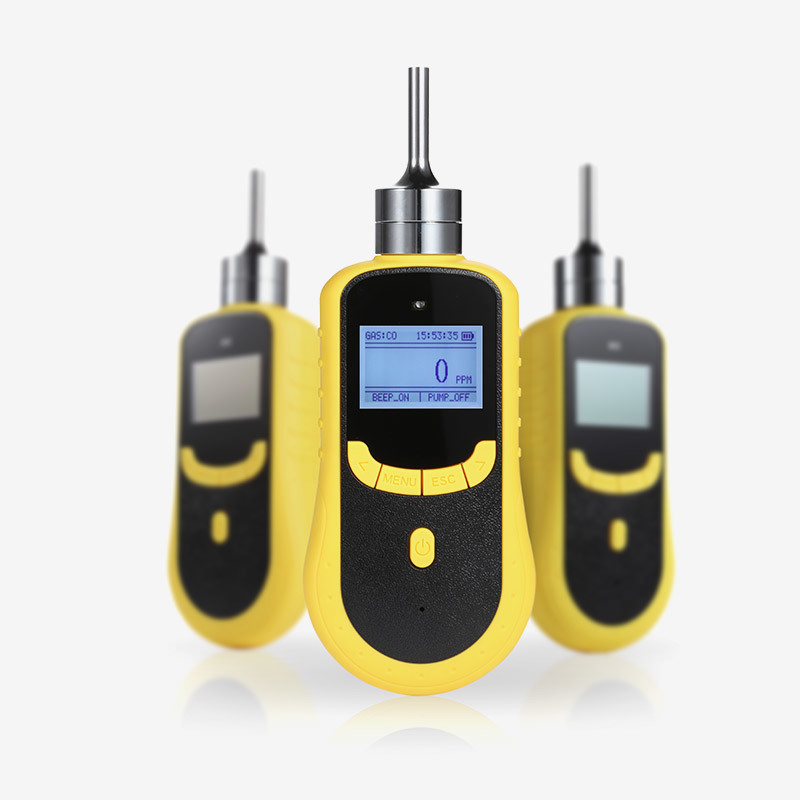

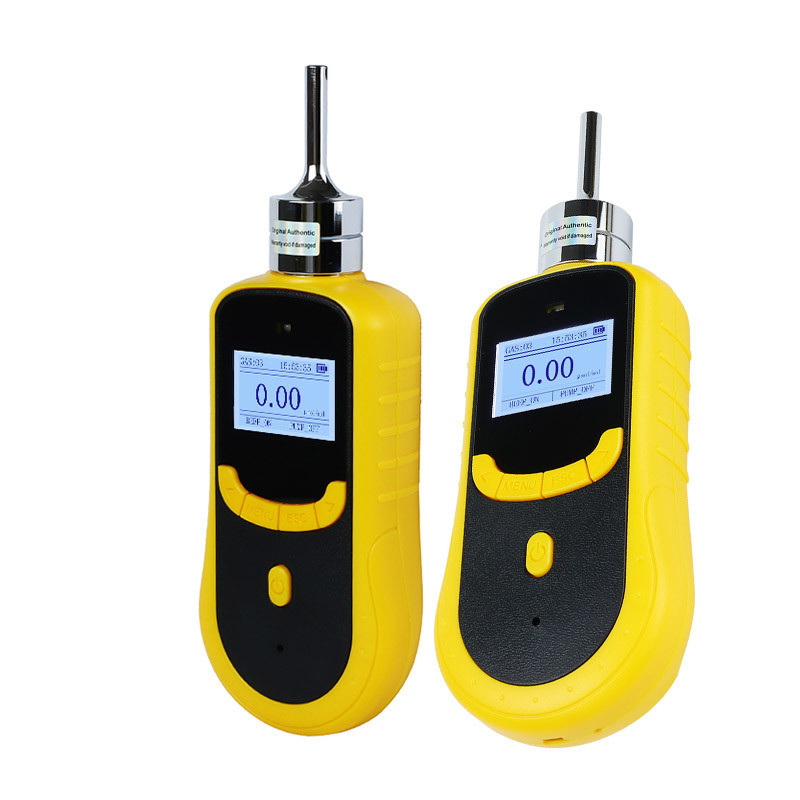

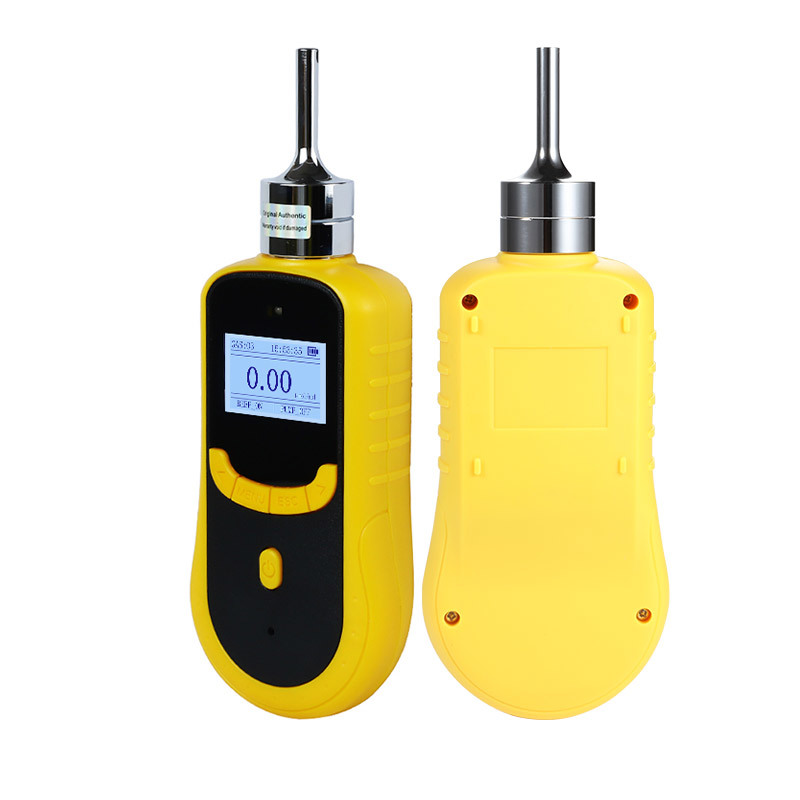

The SKY2000 is a versatile multi-gas and particle detector that integrates multiple sensors in one portable device. It can be equipped with 1–4 gas sensors, plus one laser-based dust sensor (PM10/PM2.5) and one temperature & humidity sensor. This configuration allows simultaneous monitoring of gas concentration, particulate matter, temperature, humidity, and dew point. The dust sensor supports two switchable modes – gravimetric mode (mass concentration) and particle count mode – and can detect up to 6 particle sizes at once to meet various air quality requirements. Built with globally renowned gas sensors and an internal sampling pump, the SKY2000 offers fast response, high accuracy, excellent stability, and repeatability.
| Parameter | Value |
|---|---|
| Detected Particulates | PM10, PM2.5 |
| Detection Principle | Laser |
| Measurement Range | 0 – 1000 µg/m³ |
| Resolution | 1 µg/m³ |
| Precision | ≤ ±2% F.S. |
| Response Time | ≤ 10 seconds |
| Repeatability | ≤ ±1% |
| Zero Shift | ≤ ±1% F.S./year |
| Recovery Time | ≤ 10 seconds |
| Linearity Error | ≤ ±1% |
| Parameter | Value |
|---|---|
| Sampling Method | Pump suction, max 1 L/min, 10 adjustable levels |
| Display | LCD dot matrix |
| Operating Language | Chinese / English (one-key switching) |
| Alarm Mode | Sound, light, vibration |
| Operating Temperature | -20℃ ~ +50℃ |
| Operating Humidity | 0 – 90% RH |
| Degree of Protection | IP66 |
| Explosion-Proof Grade | Ex ia II CT4 |
| Operating Time | 100 hours (pump off) |
| Dimensions | 205 × 75 × 32 mm |
| Weight | 300 g |
PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10 – all with range 0–1000 µg/m³ and resolution 1 µg/m³.
| Gas | Range | Resolution |
|---|---|---|
| CO | 0–1000 ppm | 1 ppm |
| SO₂ | 0–100 ppm | 0.01 ppm |
| NO₂ | 0–100 ppm | 0.01 ppm |
| O₃ | 0–10 ppm | 0.01 ppm |
| TVOC | 0–100 ppm | 0.01 ppm |
| NH₃ | 0–100 ppm | 0.01 ppm |
| H₂S | 0–50 ppm | 0.01 ppm |
| CO₂ | 0–2000 ppm | 1 ppm |
| CH₂O (Formaldehyde) | 0–10 ppm | 0.01 ppm |
| C₆H₆ (Benzene) | 0–10 ppm | 0.01 ppm |
Shenzhen Yuan Te Technology Co., Limited (brand: Safegas) was founded in 2010 and has 16 years of experience in designing, producing, and selling gas detection equipment and systems. We serve industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
