| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | SAFEGAS |
| Chứng nhận: | ATEX/IECEX |
| Số mô hình: | YT-98H |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Thùng carton (43*27*15cm) |
| Thời gian giao hàng: | 3 ngày làm việc |
| Điều khoản thanh toán: | T/T, Liên minh phương Tây |
| Khả năng cung cấp: | 3000 miếng mỗi tháng |
| Khí được phát hiện: | LEL, CO2, CO, H2S, O2 | Nguyên tắc phát hiện: | Động tác xúc tác ((LEL), Hóa học điện ((O2/CO/H2S), Tia hồng ngoại ((CO2) |
|---|---|---|---|
| Quyền lực: | 12-24V DC | Sự chính xác: | ≤ ± 2-5%fs |
| Thời gian trả lời (T90): | 15-30s | Độ lặp lại: | ≤ ± 1% |
| Lưu lượng bơm: | 0,35-0,5 l/phút | Nhiệt độ: | Hàng20 ℃～ 55 |
| Độ ẩm (không ngưng tụ): | 0-95%RH | Báo động tùy chọn: | còi báo động, hiển thị trạng thái báo động, giá trị báo động có thể cài đặt được |
| Cách lấy mẫu: | Bơm hút | ||
| Làm nổi bật: | 5-gas detector with pump,fixed gas detector for LEL CO2 CO H2S O2,multi gas detector 0.35-0.5L/min pump |
||

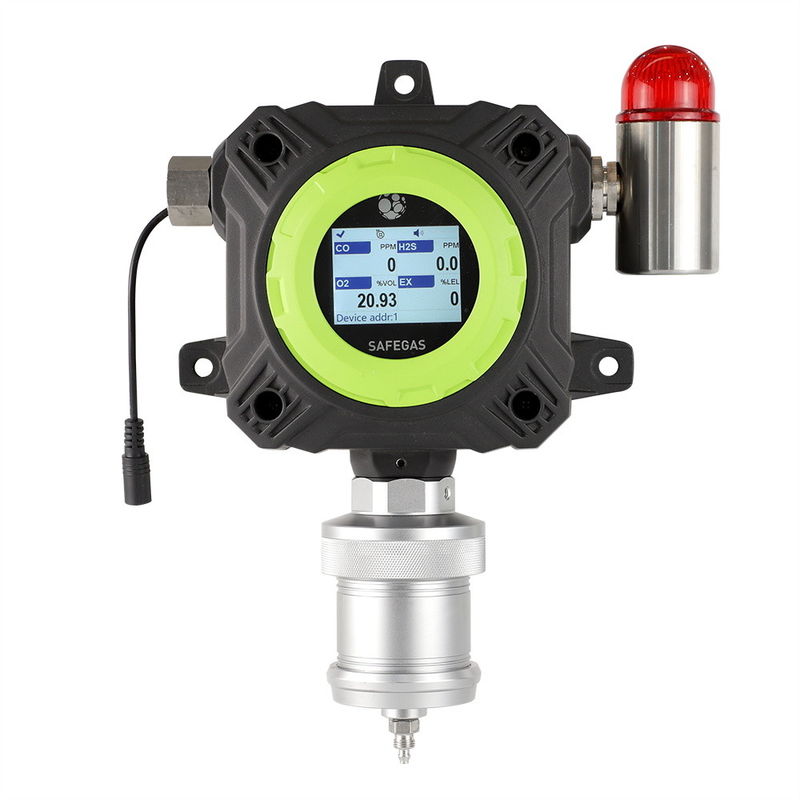

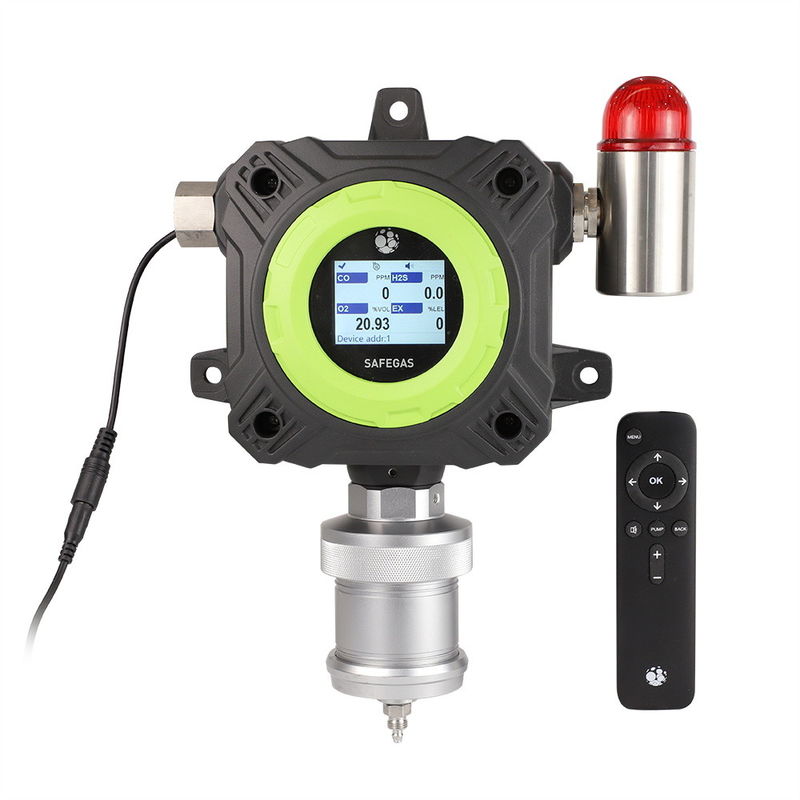

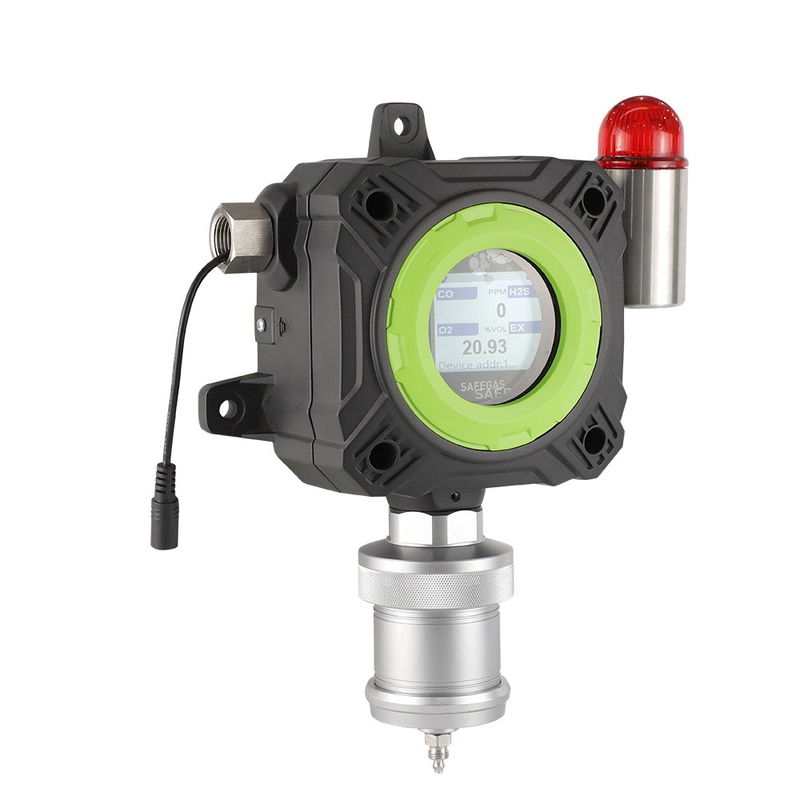

The YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi gas detector with IECEx and ATEX certification. Featuring a non-contact magnetic wand design, it's suitable for installation and operation in explosion-proof areas and the Oil & Gas industry. The device offers 3-wire 4 to 20-mA output with relays, HART, and Modbus protocols for compatibility with most control systems. Optional wireless functionality allows remote data viewing on laptops, mobile phones, or cloud systems.
| Gas Detected | LEL, CO2, CO, H2S, O2 |
|---|---|
| Detection Principle | Catalytic (LEL), Electrochemical (O2/CO/H2S), Infrared Ray (CO2) |
| Installation Method | Wall-mounted, piping type, flow-type (according to detected environment) |
| Measure Range | LEL: 0-100%LEL, O2: 0-30%vol, CO: 0-1000ppm, H2S: 0-100ppm, CO2: 0-5000PPM |
| Resolution | LEL: 1%LEL, O2: 0.1%vol, CO: 1ppm, H2S: 0.1ppm, CO2: 0-5000PPM |
| Accuracy | ≤±2-5%FS (depending on specific sensor) |
| Signal Output | 4-20MA, RS485, relay |
| Response Time (T90) | 15-30s (depending on specific sensor) |
| Recovery Time | ≤10S |
| Repeatability | ≤±1% |
| Display | 2.4-inch color display, resolution 320*240 |
| Operating Language | English/Chinese |
| Display Content | Gas molecular formula, concentration, unit, pump status, etc |
| Temperature | -20ºC~55ºC |
| Humidity | 0-95%RH |
| Explosion-Proof | IECEX:Ex db IIC T6 Gb ATEX:Ex db IIC T6 Gb |
| Degree of Protection | IP66 |
| Alarm Mode | Sound, light |
| Operating Time | 24h |
| Dimensions | 43×27×15cm |
| Weight | 4.6kg |
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems for 16 years. Focusing on "gas detector" as our core product, we offer complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Our products have obtained international explosion-proof certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001. These certifications ensure product quality comparable to international brands like Honeywell, MSA, and RAE, but with more competitive pricing.
We are proud to have worked with industry leaders including Huawei, Coca-Cola, Samsung, Nestlé, and more.
