Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: SAFEGAS
Chứng nhận: ATEX/EMC/IECEX
Số mô hình: Sky3000
Số lượng đặt hàng tối thiểu: 1
Giá bán: có thể đàm phán
chi tiết đóng gói: Vali nhôm
Thời gian giao hàng: 3-5 ngày làm việc
Điều khoản thanh toán: T/t
Khả năng cung cấp: 1000 miếng mỗi tháng
Thông tin chi tiết
Khí được phát hiện: Để được chỉ định Nguyên tắc phát hiện: Để được chỉ định
Thời gian phản hồi: ≤20 giây Độ chính xác: ≤±1-5%F.S ngoại trừ khí đặc biệt
Tự động kiểm tra và hiệu chỉnh sau khi bật nguồn: Bao gồm đặt lại, giá trị tối đa (tối đa), giá trị tối thiểu (tối thiểu), stel, giá trị TWA Nhiệt độ làm việc: -20 ~+50
Độ ẩm: 10 ~ 90%rh (không ngưng tụ) Áp lực môi trường: 86~106kpa
Kích cỡ: 157 × 84,5 × 59,5mm (bao gồm cả clip/bộ lọc bẫy nước) (chiều dài × chiều rộng × chiều cao) Cân nặng: 365g (bao gồm pin, đai đeo và bộ lọc)
Làm nổi bật:

built-in gas sampling pump multi gas detector

,

multi gas detector with water filter

,

multi gas detector with dust filter


Mô tả sản phẩm

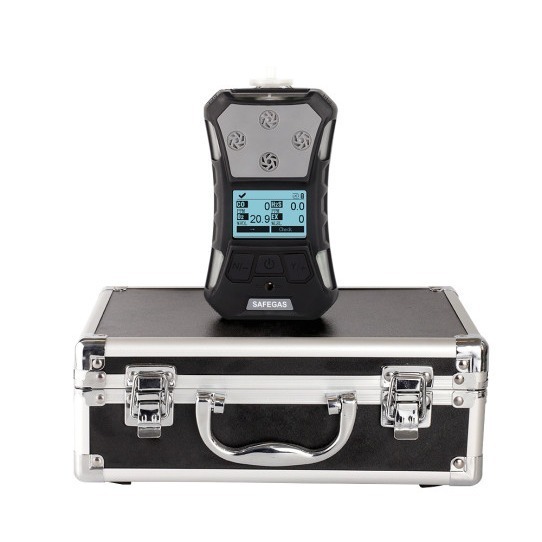

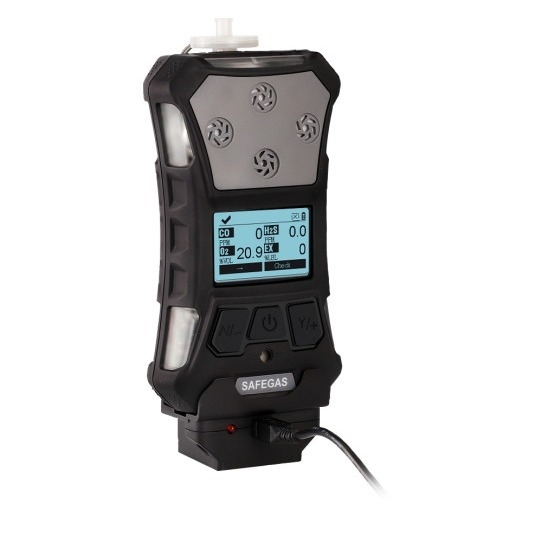

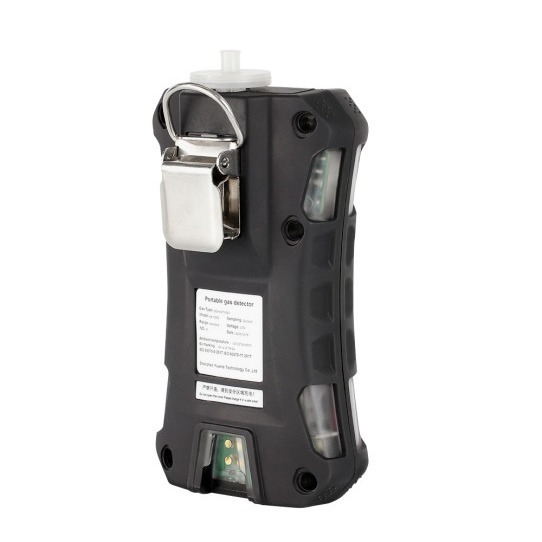

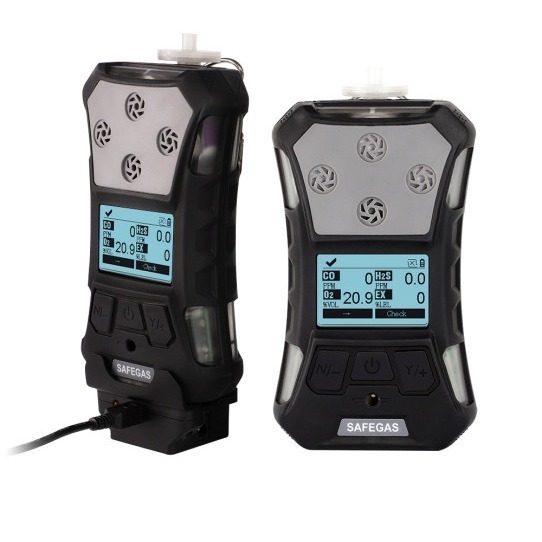

Product Name SKY3000 Portable Pumping Gas Detector
Product Overview SKY3000 is a IECEX/ATEX/EMC certified portable multi gas detector. It is suction type with built-in pump to detect up to 6 gas types in 1 device. The standard gas type is multi 4 (CO H2S O2 LEL) gases. There are thousands of gas types for selection to support very wide applications. It’s with wireless communication so user can access to real-time data and alarm status remotely. The standard datalog function to export data to PC and no need software.
Product Advantage
  1. IP67 water & dust resistant and 3 meter drop resistant case, rugged and durable designs.
  2. Standard man down alarm function
  3. Real time value, TWA, STEL, MAX, MIN multiple numerical display
  4. One press to restore factory settings.
  5. Large graphical display can rotate 180°
  6. Standard water trap filter to protect the sensor
  7. With docking station to perform daily bump test and calibration (Optional)
  8. Wireless data transmission including Lora, Bluetooth (Optional)
  9. Support backlight function the backlight time can be manually set
  10. Low power consumption, long stand by time
  11. Support firmware upgrade remotely
Technical parameters
Gas Detected
To be specified
Detection Principle
To be specified
Measure range
Specified according to application.
Resolution
Specified according to application.
Response time
≤20 seconds
Precision
≤±1-5%F.S except for special gases
Language
Chinese/English/Russian/Polish (More language can be customized)
Automatically test and calibrate after power-on
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit
PPM, mg/m³, %LEL, %VOL
Display
LCD (160 x 96), 180° rotate
Backlight
Turned on automatically when alarming, the backlight time can be manually set
Data record
100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
Alarm
95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
Battery
3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours
More than 15 hours in continuous pumping mode
Charger
Travel charger with DC interface, charging time ≥ 4 hours
Working temperature
-20℃~+50℃
Explosion-proof grade
IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
Humidity
10~90%RH (no condensation)
Certification (EU regulations)
2004/34/UE (ATEX)
Protection grade
IP67
Environmental pressure
86~106Kpa
Size
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight
365g (including battery, belt clip and filter)
Product Images

Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 0

Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 1

Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 2

Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 3

Gas Detection Capabilities
Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 4 Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 5 Built-In Gas Sampling Pump Multi Gas Detector Standard Water And Dust Filter 6
