Portable Multi Gas Detector with 15 Hours Continuous Operation IECEx and ATEX Certificate

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: SAFEGAS
Chứng nhận: ATEX/EMC/IECEX
Số mô hình: Sky3000
Số lượng đặt hàng tối thiểu: 1
Giá bán: có thể đàm phán
chi tiết đóng gói: Vali nhôm
Thời gian giao hàng: 3 ngày làm việc
Điều khoản thanh toán: T/T, Công Đoàn Phương Tây
Khả năng cung cấp: 1000 miếng mỗi tháng
Thông tin chi tiết
Loại khí: O2,CO,H2S,LEL là máy kết hợp khí tiêu chuẩn,các máy kết hợp khí khác có thể được chỉ định Phương pháp lấy mẫu: Bơm hút
Phạm vi đo: Chỉ định theo ứng dụng Nghị quyết: Chỉ định theo ứng dụng
Chứng nhận: CE,ATEX,IECEx,ISO Ngôn ngữ: Tiếng Trung/Tiếng Anh (Có thể tùy chỉnh thêm ngôn ngữ)
Báo thức: chuông chuông, đèn LED đỏ nhấp nháy và báo động rung động Quyền lực: Pin lithium có thể sạc lại 3.7V
Giờ làm việc: Hơn 15 giờ ở chế độ bơm liên tục Thời gian đáp ứng: ≤30 giây
Hồ sơ dữ liệu: Có thể lưu trữ 100.000 bộ dữ liệu Kích thước gói đơn:: 34X24X14 cm
Tổng trọng lượng đơn:: 1.64kg
Làm nổi bật:

15 Hours Continuous Operation Multi Gas Detector

,

Response Time ≤30 Seconds Portable Gas Detector

,

100


Mô tả sản phẩm

SAFEGAS Multi Gas Detector Portable Pump Suction Back Clip IECEX ATEX Explosion-Proof Certification
Product Description

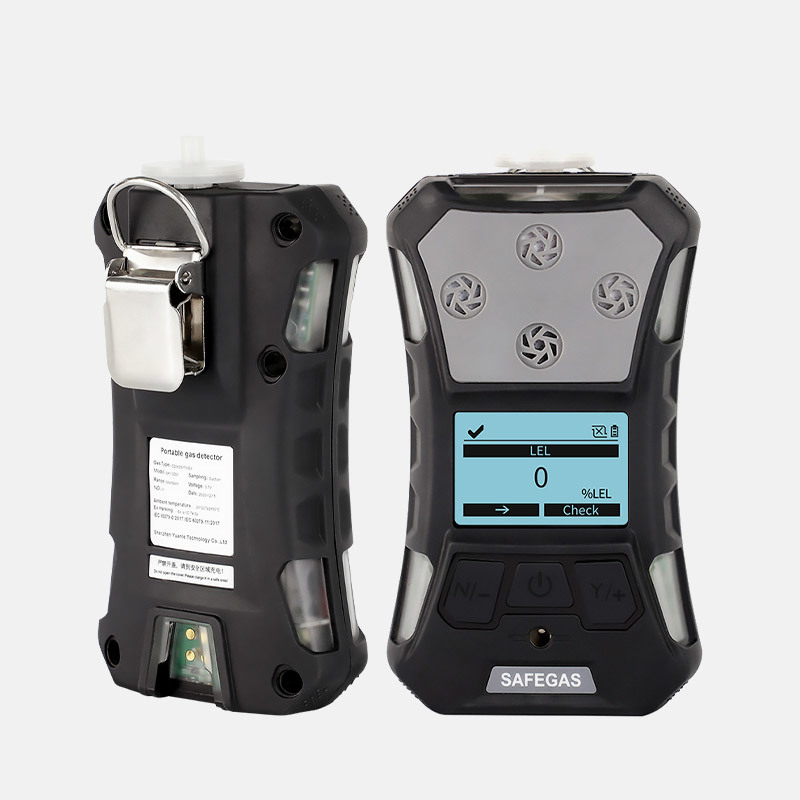

SKY3000 Portable gas detector
Portable Multi Gas Detector with 15 Hours Continuous Operation IECEx and ATEX Certificate 0

The SKY3000 series is a high-performance portable gas detector capable of simultaneously detecting multiple gases (Oxygen compounds VOC, combustible gas and toxic gas) with man down alarm functionality. The device features user-friendly operation including one-key security detection, one-key storage, automatic screen rotation, and man down alarm. Optional Bluetooth transmission allows safety personnel to monitor real-time data and alarm status.

Certified with international IECEX, ATEX explosion-proof standards and Chinese explosion-proof certification, the detector features IP67 protection rating and passed antistatic tests. Its modular design enables faster detection while the compact ergonomic design ensures easy portability. The instrument primarily operates in suction mode with automatic switch to diffusion sampling during pump failure or emergencies for enhanced protection.

The SKY3000 series carries an explosion-proof rating of Ex ia IIC T4 Ga, suitable for explosive gas mixture zones 0, 1, and 2 in industrial environments with grades ⅡA, ⅡB, and ⅡC and temperature groups T1~T4.

Product Advantages
Rugged and durable
  • Withstands 3-meter drops
  • IP67 protection rating
  • Passed EMC anti-static interference tests for reliable operation in walkie-talkie environments
Portable Multi Gas Detector with 15 Hours Continuous Operation IECEx and ATEX Certificate 1
Explosion-proof circuit design, safe and reliable
  • Certified with IECEX, ATEX, and Chinese explosion-proof standards
  • Explosion-proof level reaches Exia IICT4 Ga
Multiple security protection
  • Man down alarm enhances safety for underground operators
  • Password protection prevents unauthorized parameter changes
  • Safety reminders with sound, light, and vibration alarms
Simultaneous measurement of multiple gases, multiple numerical display
Portable Multi Gas Detector with 15 Hours Continuous Operation IECEx and ATEX Certificate 2
  • Detects 1-4 gases simultaneously
  • Displays real-time values, TWA, STEL, MAX, MIN measurements
Large screen display, flexible detection system, multiple filtering devices
  • 180° auto-rotating screen for versatile viewing
  • Powerful built-in sampling pump for fast detection
  • Supports 20m external sampling tubes for confined space detection
  • Dual pump suction and diffusion modes
  • Water trap filter removes water, oil, dust for harsh environments
Powerful function, more user-friendly operation
Portable Multi Gas Detector with 15 Hours Continuous Operation IECEx and ATEX Certificate 3
  • Intuitive user interface with easy navigation
  • Optional Bluetooth for real-time data transmission
  • One-click data export for analysis
  • Customizable ID for instrument management
  • Automatic detection for voltage, pump failure alerts
  • One-key security detection
  • PPM and mg/m3 unit conversion
  • Individual sensor factory reset
  • Multi-language support (English, Chinese, etc.)
Product Configuration
Portable Multi Gas Detector with 15 Hours Continuous Operation IECEx and ATEX Certificate 4
Standard accessories:
  • Gas detector (1 piece)
  • 12V/1A DC power adapter (1 piece)
  • USB cable (1 piece)
  • User manual (1 piece)
  • Warranty card (1 piece)
  • Filter (1 piece)
  • Aluminum suitcase (1 piece)

Gas Detected
To be specified
Detection Principle
To be specified
Measure range
Specified according to application.
Resolution
Specified according to application.
Response time
≤20 seconds
Precision
≤±1-5%F.S except for special gases
Language
Chinese/English/Russian/Polish (More language can be customized)
Automatically test and calibrate after power-on
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit
PPM, mg/m³, %LEL, %VOL
Display
LCD (160 x 96), 180° rotate
Backlight
Turned on automatically when alarming, the backlight time can be manually set
Data record
100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
Alarm
95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
Battery
3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours
More than 15 hours in continuous pumping mode
Charger
Travel charger with DC interface, charging time ≥ 4 hours
Working temperature
-20℃~+50℃
Explosion-proof grade
IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
Humidity
10~90%RH (no condensation)
Certification (EU regulations)
2004/34/UE (ATEX)
Protection grade
IP67
Environmental pressure
86~106Kpa
Size
157×84.5×59.5mm (including back clip/water trap filter) (length × width × height)
Weight
365g (including battery, belt clip and filter)
