0-100PPM Handheld H₂O₂ Gas Detector for Disinfection and Medical Industry
Hydrogen peroxide (H₂O₂) is widely used in medical disinfection, clinical chemistry, dyeing and bleaching, and food testing applications. Disinfection supply centers and operating room inspection departments require hydrogen peroxide low-temperature plasma sterilizers, where gas leaks or excessive residual concentrations can pose health risks. The maximum allowable concentration is typically 1.4mg/m³ (approximately 1ppm), making reliable H₂O₂ detection essential.

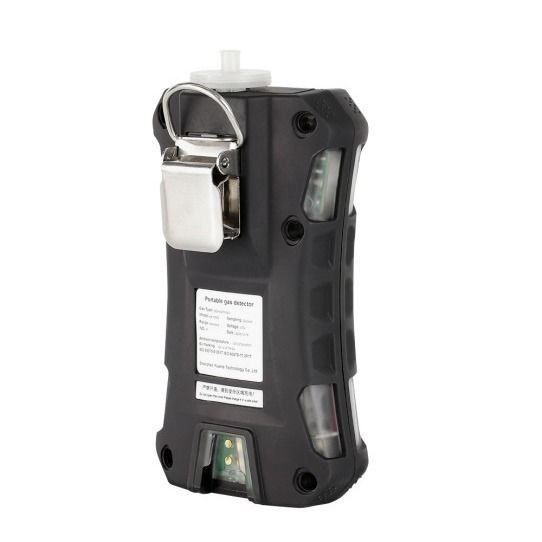

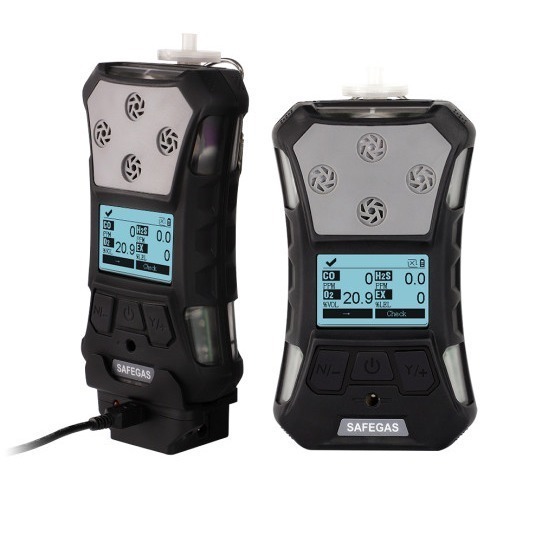

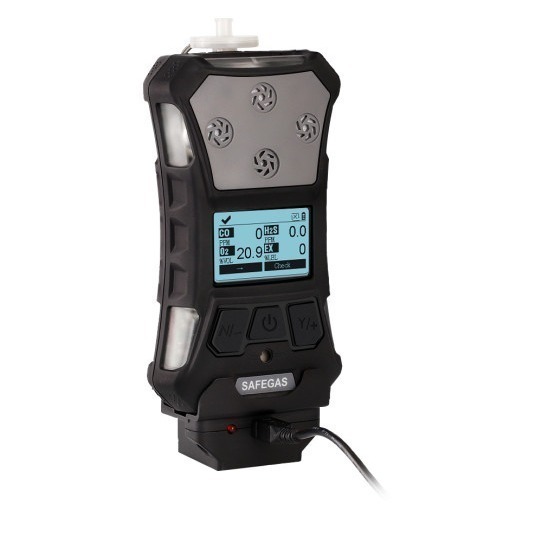

SKY3000 Portable Gas Detector
The SKY3000 series is a high-performance portable gas detector capable of simultaneously monitoring multiple gases including oxygen compounds, VOCs, combustible gases, and toxic gases. Featuring man-down alarm functionality, this device offers user-friendly operations including one-key security detection, one-key storage, automatic screen rotation, and optional Bluetooth data transmission for real-time monitoring.
Product Advantages
Rugged and Durable
- Withstands 3-meter drop tests
- IP67 protection rating for dust and water resistance
- EMC anti-static interference tested for reliable operation in walkie-talkie environments
Explosion-Proof Circuit Design
- Certified with IECEX, ATEX, and Chinese explosion-proof standards
- Explosion-proof level: Exia IICT4 Ga
Multiple Security Protection
- Man-down alarm enhances operator safety in underground operations
- Password protection prevents unauthorized parameter modifications
- Safety reminders with sound, light, and vibration alarms
Multi-Gas Detection Capability
- Simultaneous detection of 1-4 gases
- Multiple numerical displays: real-time, TWA, STEL, MAX, MIN values
Advanced Display and Detection System
- 180-degree auto-rotating screen for versatile viewing angles
- Built-in powerful sampling pump for rapid detection
- External 20m sampling tube for long-distance or confined space monitoring
- Pump suction and diffusion dual-mode operation
- Water trap filter removes water, oil, dust and other impurities
User-Friendly Operation
- Intuitive user interface with easy navigation
- Optional Bluetooth for real-time data transmission to mobile/PC
- Standard data storage with one-click export functionality
- Unique modifiable ID identification for instrument management
- Automatic detection functions with voltage and pump failure alerts
- One-key security detection
- PPM and mg/m³ unit conversion
- Individual sensor channel factory reset capability
- Multi-language support including English and Chinese
Technical Specifications
| Sampling Method | Pump Suction |
| Gas Type | H₂O₂ |
| Measure Range | 0-50, 100PPM |
| Resolution | 0.01PPM |
| Response Time | ≤10 seconds |
| Precision | ≤±1%F.S |
| Language | English (Other languages customizable) |
| Display | Monochrome graphics (160 x 96), auto-flip screen |
| Data Record | 100,000 data sets, adjustable storage interval (5-3600 seconds) |
| Alarm | 95dB buzzer, vibration, flashing LED, screen indication, diagnostic alerts, battery undervoltage, pump block, man-down alarm |
| Battery | 3.7V rechargeable lithium battery, 2200mAh capacity |
| Working Hours | More than 15 hours continuous pumping |
| Charger | Travel charger with DC interface, ≥4 hours charging time |
| Explosion-proof Grade | IECEX/ATEX(II IG Ex ia IIC T4), CNEX:Ex ia IIC T4 Ga |
| Protection Grade | IP67/IP68 |
| Working Temperature | -20ºC to +50ºC |
| Humidity | 0-90%RH (no condensation) |
| Environmental Pressure | 86-106Kpa |
| Size | 157×84.5×59.5mm (including back clip/water trap filter) |
| Weight | 365g (including battery, belt clip and filter) |
Standard Configuration
- Gas detector: 1 piece
- 12V/1A DC power adapter: 1 piece
- USB cable: 1 piece
- User manual: 1 piece
- Warranty card: 1 piece
- Filter: 1 piece

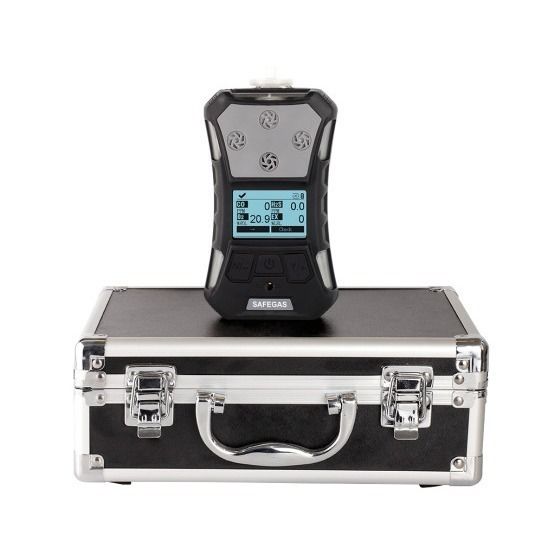

- Aluminum suitcase: 1 piece
