| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | SAFEGAS |
| Chứng nhận: | ATEX/IECEX |
| Số mô hình: | SG100-D |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Đóng gói vali nhôm |
| Thời gian giao hàng: | 3 ngày làm việc |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 100 miếng/ngày |
| Khí được phát hiện: | LEL,CO,H2S,O2 | Đo lường phạm vi và độ phân giải: | CO 0-1000ppm, H2S 0-100ppm, LEL 0-100%LEL, O2 0-30%Vol |
|---|---|---|---|
| Sự chính xác: | ≤±2%FS hoặc ±10%（Tùy thuộc vào cảm biến） | Lớp bảo vệ: | IP66/68 |
| Không dây (tùy chọn): | LORA, 4G | Nhiệt độ làm việc: | -20 ℃～ 50 |
| Kích cỡ: | 178*129*70mm | Cân nặng: | 1,4kg |
| Tiếp sức: | 3 rơle, bao gồm rơle cảnh báo thấp/cao/lỗi (Tùy chọn) | Lớp chống cháy nổ:: | IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ； ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb |
| Làm nổi bật: | IP66/68 Protection Grade Fixed Gas Detector,IECEX and ATEX Certified Multi Gas Detector,RS485 Alarm Function Gas Detection System |
||
IECEx and ATEX certified fixed diffusion sampling detector with IP66/68 protection, monitoring LEL, CO, H₂S, and O₂ with RS485 alarm functionality.

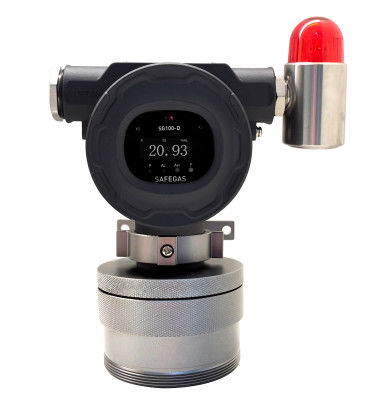

The SG100-D series represents an innovative intelligent fixed multi-gas detector featuring hot-swappable functionality. Once installed, its hot-swappable design significantly simplifies maintenance procedures. Technicians can replace components such as sensors without shutting down the entire system, ensuring continuous operation in critical gas monitoring scenarios.
This detector delivers high-efficiency gas detection, capable of continuously monitoring up to four different gases within a single unit. Whether detecting common hazardous gases like carbon monoxide, hydrogen sulfide, methane, or oxygen, it provides comprehensive coverage for various industrial and environmental applications.
Safety remains a top priority for the SG100-D series, as demonstrated by its IECEx and ATEX certifications. With an explosion level reaching Ex db IIC T6 intrinsically safe grade, it can be securely deployed in explosive environments such as oil refineries and chemical plants, minimizing ignition risks.
The magnetic wand design enhances both user-friendliness and safety. In explosion-prone areas, operators can use the magnetic wand to navigate menus easily, eliminating the need for direct physical contact while reducing potential spark-induced accidents.
| Detected Gas | LEL, H₂S, CO, O₂ |
|---|---|
| Principle | Catalytic Combustion (LEL), Electrochemical (H₂S, CO, O₂) |
| Measure Range | CO 0-1000PPM, H₂S 0-100PPM, LEL 0-100%LEL, O₂ 0-30%VOL |
| Resolution | CO 1PPM, H₂S 0.1PPM, LEL 1%LEL, O₂ 0.1%VOL |
| Install Method | Wall-mounted |
| Events | 1000 sets per channel, downloadable by GPC |
| Precision | ≤±2%FS or ±10% (Depends on sensor) |
| Response Time | T90<60s (Depends on sensor) |
| Repeatability | ±2%F.S |
| Temperature | -20℃～50℃ |
| Humidity | 10-95%RH (non-condensing) |
| Explosion-Proof | IECEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb; ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb |
| Degree of Protection | IP66/IP68 |
| Power | 12-30V DC |
| Dimensions | 178*129*70mm |
| Weight | 1.4kg (No mounting bracket, alarm light) |
| Approval | CE, CNEX explosion proof certificate, CMC (China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) focuses on the design, production, and sales of gas detection equipment and systems for 16 years. With "gas detector" as our core product, we have developed complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure consistent product quality. We hold more than 100 independent intellectual property patents in design and development. Our production features skilled technical workers and complete industrial lines, ensuring full process quality control. Our company possesses rich overseas sales experience and a professional sales team, providing customers with 7*24h considerate service.
Our professional R&D department has been engaged in gas detection industry for approximately 25 years. They possess professional knowledge and rich experience, enabling them to provide customers with comprehensive technical after-sales service.
We implement a strict quality management system and adhere to the principle of quality first as our core production philosophy. Consequently, we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
Our products have obtained IECEx and ATEX explosion-proof certification, enabling their use in hazardous areas such as mines, underground facilities, and oil plants. We are the first and currently the only manufacturer in China to obtain this certification. Products without explosion-proof certification are prohibited from use in dangerous areas.
Our core components, including ICs and sensors, utilize imported brands like Honeywell, CITY and Alpha. This enhances our product accuracy, stabilizes service life, ensures detection precision, and protects customer safety.
Our complete product line and stable inventory enable fast delivery. Orders under 10 pieces typically ship within 3 days. For quantities exceeding 100 pieces, we can generally deliver within half a month under normal circumstances.
