| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | SAFEGAS |
| Chứng nhận: | ATEX/EMC/IECEX |
| Số mô hình: | Micmeta |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Thùng carton (22*16*11cm) |
| Thời gian giao hàng: | 3 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 3000 miếng mỗi tháng |
| Phương pháp làm việc: | Khuếch tán | Thời gian trả lời (T90): | ≤30s |
|---|---|---|---|
| Hồ sơ dữ liệu: | 1000 bộ bản ghi dữ liệu và 100 bộ bản ghi sự kiện | Ắc quy: | Pin lithium có thể sạc lại 3.7V, dung lượng pin 2300mA |
| Truyền không dây: | Chức năng truyền Bluetooth (tùy chọn), chức năng truyền Lora (tùy chọn) | Giờ làm việc: | Thời gian chờ 24h, thời gian sạc <6h |
| Chứng nhận: | ATEX/IECEx/EMC | Lớp bảo vệ: | IP66/IP68 |
| cân nặng: | 240g (với pin lithium) |

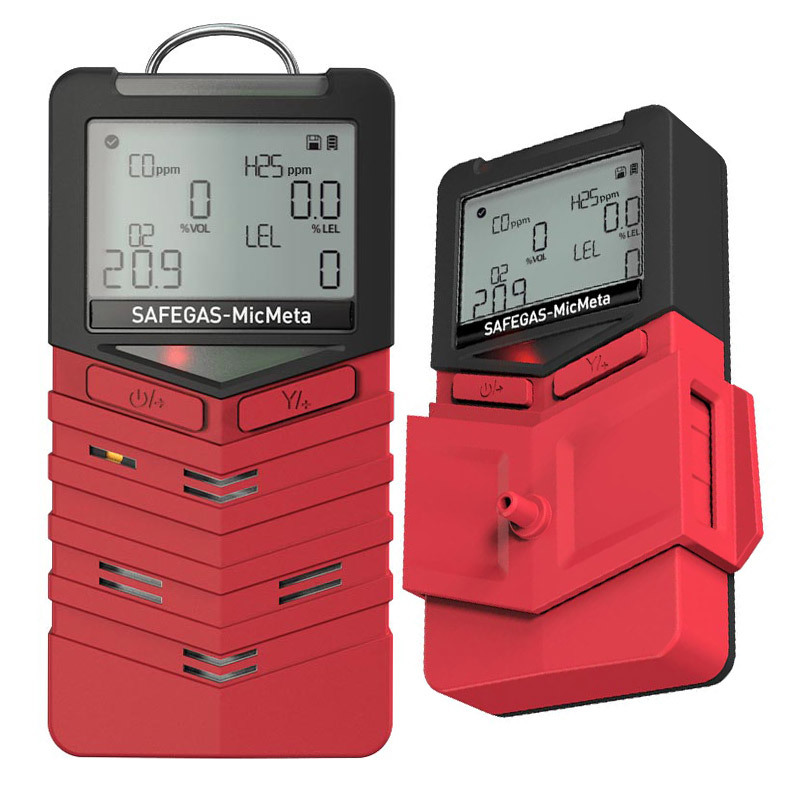

MicMeta is a multi-gas detector certified by IECEx, ATEX, and EMC. This lightweight, compact device features standard detection for CO, H2S, O2, and LEL gases, with support for hundreds of selectable gases. Includes standard man-down alarm and data logging functions, with optional Lora and Bluetooth wireless data transmission for easy data access.
| Sampling method | Diffusion |
| Gas type | H2S LEL O2 CO |
| Measure range | Customized |
| Resolution | Customized |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on specific sensor) |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, with automatic concentration value conversion |
| Display | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars with alarm status indication on screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| EU regulations | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86~106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
Safegas is a company that focuses on the design, production and sales of environmental monitoring equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
For years, Safegas has maintained the management concept "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture and standardized management, Safegas has gathered talented professionals and built strong management and R&D teams.
Through years of measurement experience and Safegas solutions, combined with independent research, cooperative development, and learning overseas latest technology, Safegas products are domestically advanced and can compete with international brands. We continuously seek development and progress to meet diversified customer demands.
