| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | SAFEGAS |
| Chứng nhận: | ATEX/EMC/IECEX |
| Số mô hình: | Sky3000 |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Vali nhôm |
| Thời gian giao hàng: | 3 ngày làm việc |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 1000 miếng mỗi tháng |
| khí đốt: | CO | Phạm vi đo: | 0-1000ppm |
|---|---|---|---|
| Nghị quyết: | 1ppm | Loại cảm biến: | Điện hóa |
| Phương pháp lấy mẫu: | Bơm hút | Chứng nhận: | CE,ATEX,IECEx,ISO |
| Ngôn ngữ: | Trung Quốc/Anh/Nga/Tùy chỉnh | Chế độ báo động: | Buzzer, LED và rung động |
| Quyền lực: | Với pin lithium sạc 3,7V | Giờ làm việc: | Hơn 15 giờ (với máy bơm đang chạy) |
| Hồ sơ dữ liệu: | Có thể lưu trữ 100000 bộ dữ liệu | Kích thước gói đơn:: | 34cm*24cm*14cm |
| Tổng trọng lượng đơn:: | 1.64kg | Lớp bảo vệ: | IP67 |

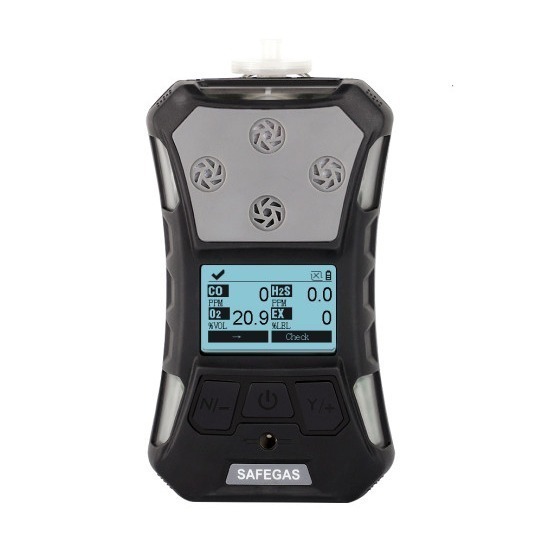

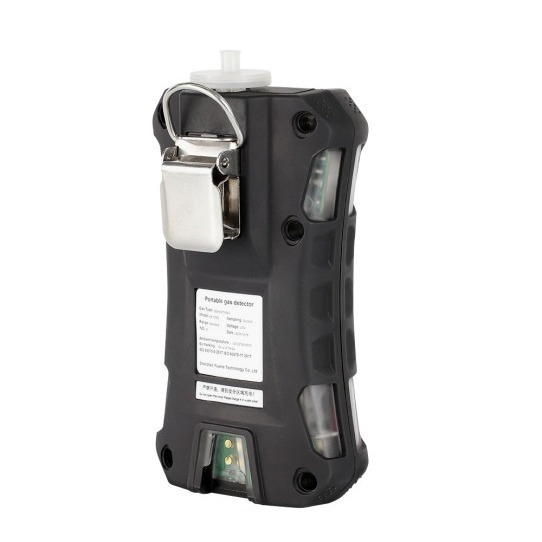

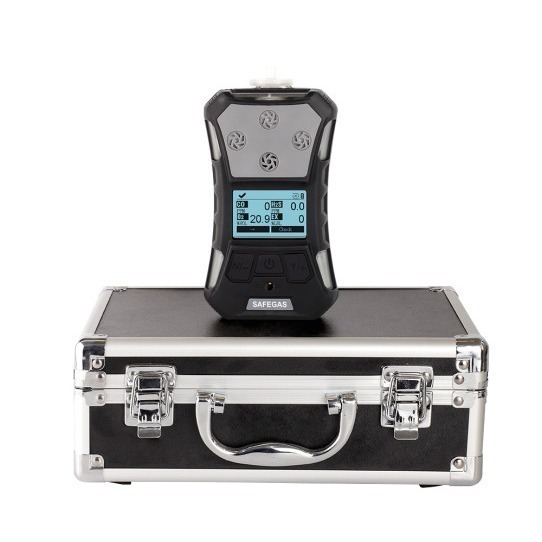

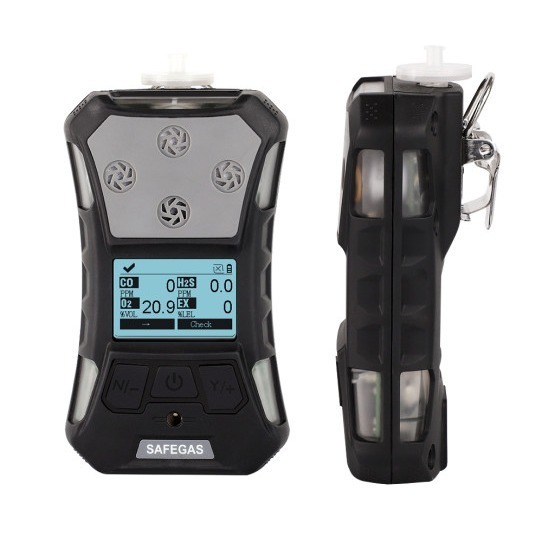

SKY3000 Portable Gas Detector - A high-performance portable gas detector capable of detecting multiple gases simultaneously with man down alarm function. Features international IECEX and ATEX explosion-proof certification with IP67 protection rating.
| Parameter | Specification |
|---|---|
| Sampling method | Pump suction |
| Gas type | Specified according to application |
| Measure range | Specified according to application |
| Resolution | Specified according to application |
| Response time | ≤10 seconds |
| Precision | ≤±1% F.S |
| Language | English (Other languages customizable) |
| Automatic functions | Reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ switchable |
| Display | Monochrome graphics (160 x 96), automatic screen flip |
| Backlight | Manually settable time, automatic on during alarm |
| Data record | 100,000 data sets, adjustable storage interval 5-3600 seconds, data exportable |
| Alarm | 95dB buzzer, vibration, flashing red LED, screen indication, diagnostic alarm, battery undervoltage, pump block, man down alarm with Bluetooth notification |
| Battery | 3.7V rechargeable lithium battery, 2200mA capacity |
| Working hours | More than 15 hours continuous pumping |
| Charger | Travel charger with DC interface, ≥4 hours charging time |
| Explosion-proof grade | IECEX/ATEX (II IG Ex ia IIC T4), CNEX: Ex ia IIC T4 Ga |
| Certification (EU) | 2004/108/EC (EMC), 1995/5/EC (Radio), 94/9/EC (ATEX) |
| Protection grade | IP67/IP68 |
| Working temperature | -20ºC to +50ºC |
| Humidity | 0-90% RH (no condensation) |
| Environmental pressure | 86-106 Kpa |
| Size | 157 × 84.5 × 59.5mm (including accessories) |
| Weight | 365g (including battery and accessories) |
| Bluetooth function (Optional) | Real-time data transmission to mobile phone or PC |
This device is widely used in various industrial fields:
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Our products include portable types, fixed types and controller panels:
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality comparable to international brands with competitive pricing.
We have successfully cooperated with major international companies including Huawei, Coca-Cola, Samsung, Nestlé and more.
