| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | SAFEGAS |
| Chứng nhận: | ATEX/IECEX |
| Số mô hình: | SG100 |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Đóng gói vali nhôm |
| Thời gian giao hàng: | 3 ngày làm việc |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 1000 miếng/ngày |
| Khí được phát hiện: | CH4 | Đo lường phạm vi và độ phân giải: | 0-100%lel |
|---|---|---|---|
| Độ phân giải: | 1%lel | Loại cảm biến: | quá trình đốt cháy xúc tác |
| Sự chính xác: | ≤ ± 2-5%fs | Chứng nhận chống nổ: | IECEX, ATEX, CE |
| Lớp bảo vệ: | IP66/68 | Chế độ giao tiếp: | 4-20mA 、 rs485 1 ～ 5V ， Hart tùy chọn |
| Không dây (tùy chọn): | Hỗ trợ lora hoặc 4G | Tiếp sức: | 3 rơle, bao gồm rơle cảnh báo thấp/cao/lỗi (Tùy chọn) |
| Nhiệt độ làm việc: | 2020 ℃～ 50 | Cân nặng: | 1,0Kg |
| Kích cỡ: | 157.8x128.8x69.6mm |

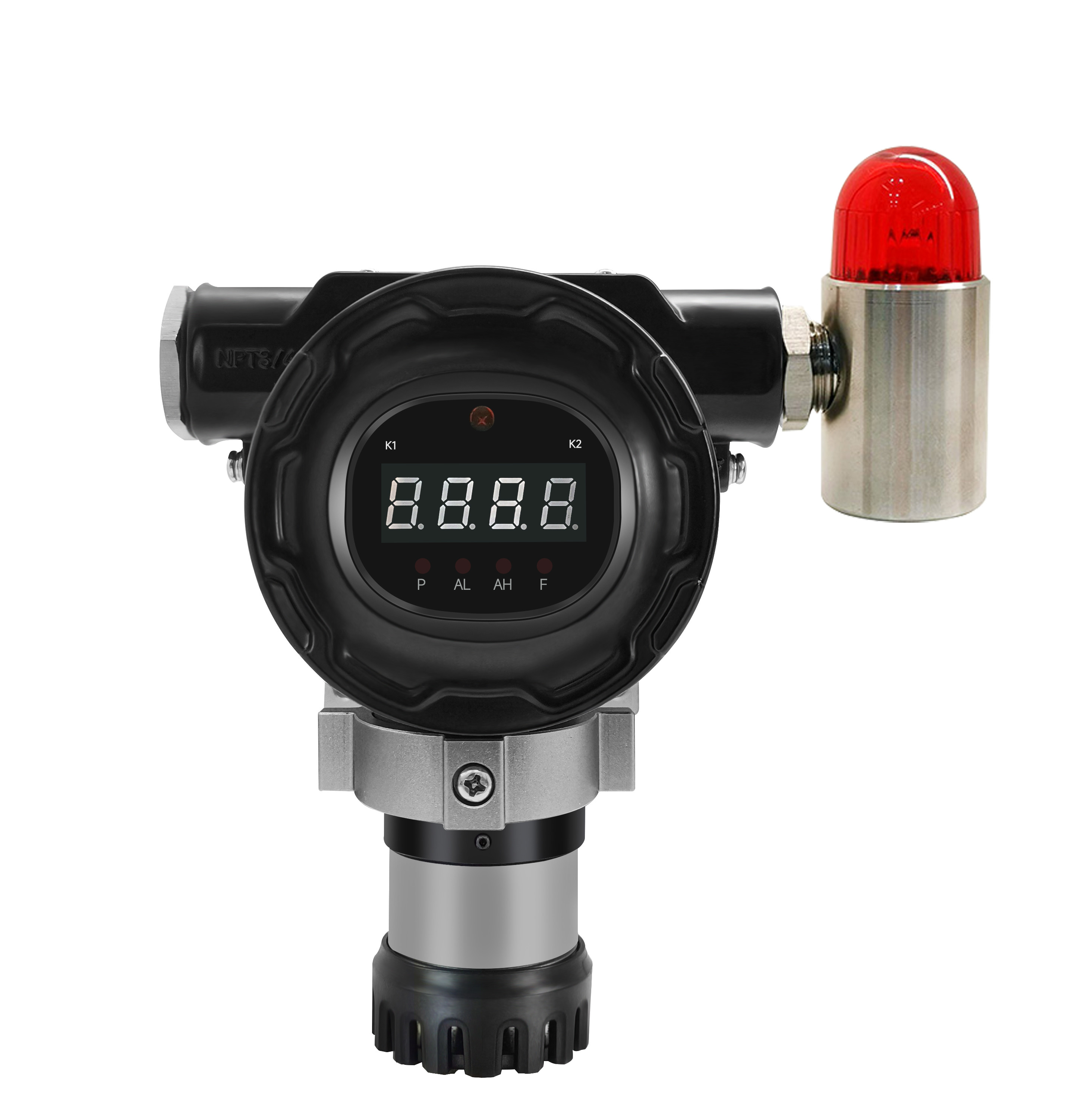

High-precision Fixed CH4 Gas Detector with diffusion detection principle, designed for industrial safety applications.
SG100 series is a cost-effective and intrinsically safe gas detector for the continuous monitoring of toxic gases, oxygen, and flammable gases. With IECEx and ATEX certificates, explosion level reaches Ex db IIC T6 GB/Ex db ia IIC T6 GB/Ex da db ia IIC T6 GB. Featuring a 3-wire 4 to 20 mA analog output with relays, it also offers HART and RS485 Modbus protocol, making it compatible with most control systems. Optional wireless function eliminates wiring needs, saving labor costs and enabling transmission without limits. Magnetic wand design ensures safe and easy menu navigation in explosion areas. This intelligent hot-swappable fixed gas detector simplifies maintenance after installation.
| Parameter | Specification |
|---|---|
| Gas Detected | CH4 |
| Detection Principle | Specified according to the application |
| Measure Range | Specified according to the application |
| Resolution | Specified according to the application |
| Accuracy | ≤ ±2-5%FS (Depending on the specific sensor) |
| Explosion-proof Grade | IECEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb |
| Protection Grade | IP66/68 |
| Power Dissipation | Toxic gas <2.5W, Flammable gas <4W |
| Communication Mode | 4-20mA (3-wires), RS485 1~5V, Hart (Optional) |
| Wireless | LORA, GPRS/4G (Optional) |
| Working Voltage | 12-24VDC |
| Contact Capacity | Standard with 1 set of relay signals, optional with 2 sets of relay signals |
| Display | LED display |
| Working Temperature | -40℃ ~ 70℃ (Catalytic sensor), -20℃ ~ 50℃ (Electrochemistry sensor) |
| Working Pressure | 86kPa~106kPa |
| Housing Material | Die casting aluminum |
| Electrical Interface | Standard internal screw thread M20 * 1.5, Optional 1/2NPT internal thread, G3/4, G1/2, 3/4NPT |
| Size | 157.8×128.8×69.6mm |
| Weight | About 1.0Kg |
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Our product portfolio includes portable detectors, fixed systems, controller panels and particle counters:
