| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | SAFEGAS |
| Chứng nhận: | CEP |
| Số mô hình: | AQD5000 |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | Negotiate |
| chi tiết đóng gói: | thùng carton |
| Thời gian giao hàng: | 10 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 300 miếng mỗi tháng |
| Đầu ra tín hiệu: | RS485、relay、4G DTU (không cần thiết)、LORA (không cần thiết), vv | Tốc độ dòng bơm: | 0,5L/phút đối với gas; 1,8L/phút đối với hạt và bụi |
|---|---|---|---|
| Chế độ hiển thị: | Số kênh hiển thị thích ứng, chuyển trang tự động | Nhiệt độ làm việc: | -10℃～55℃ |
| Phương pháp lấy mẫu: | Bơm hút | Độ ẩm làm việc: | 0-95%RH (độ ẩm tương đối) |
| Cách giám sát: | Giám sát thời gian thực tự động liên tục | Loại báo động (tùy chọn): | báo động âm thanh và ánh sáng |
| Trọng lượng sản phẩm: | 18kg | Màn hình hiển thị: | Màn hình cảm ứng màu, 7 inch |

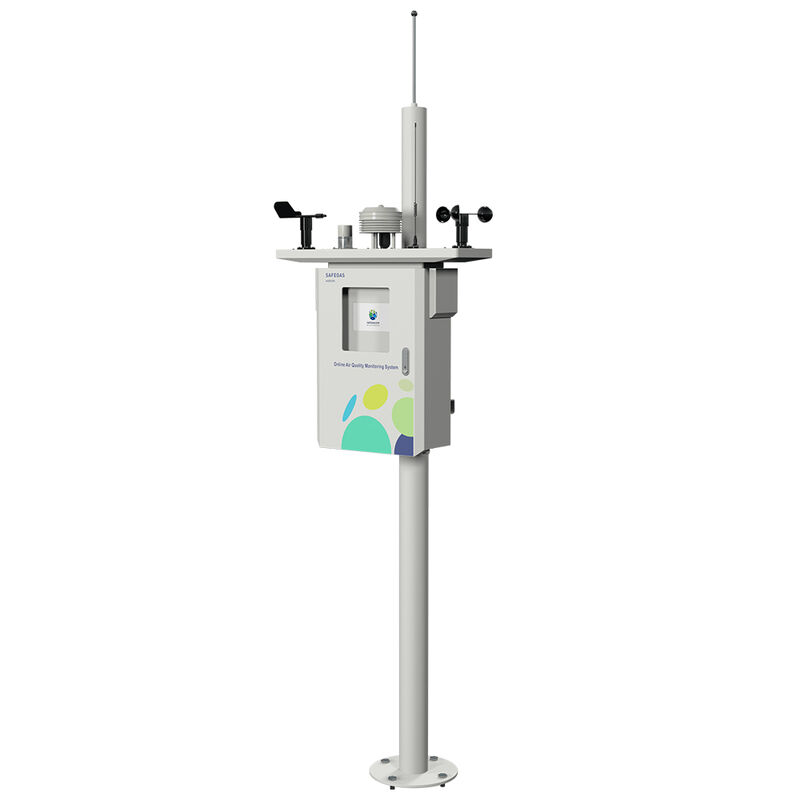

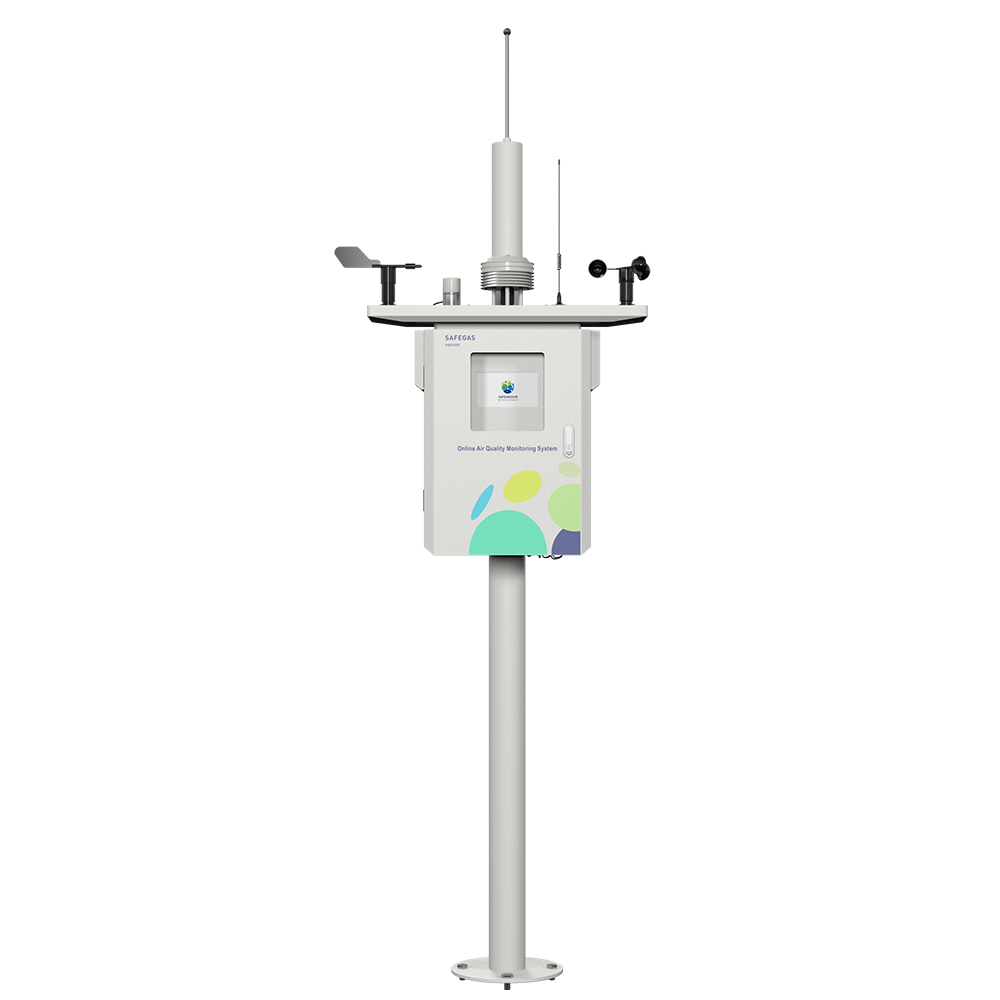

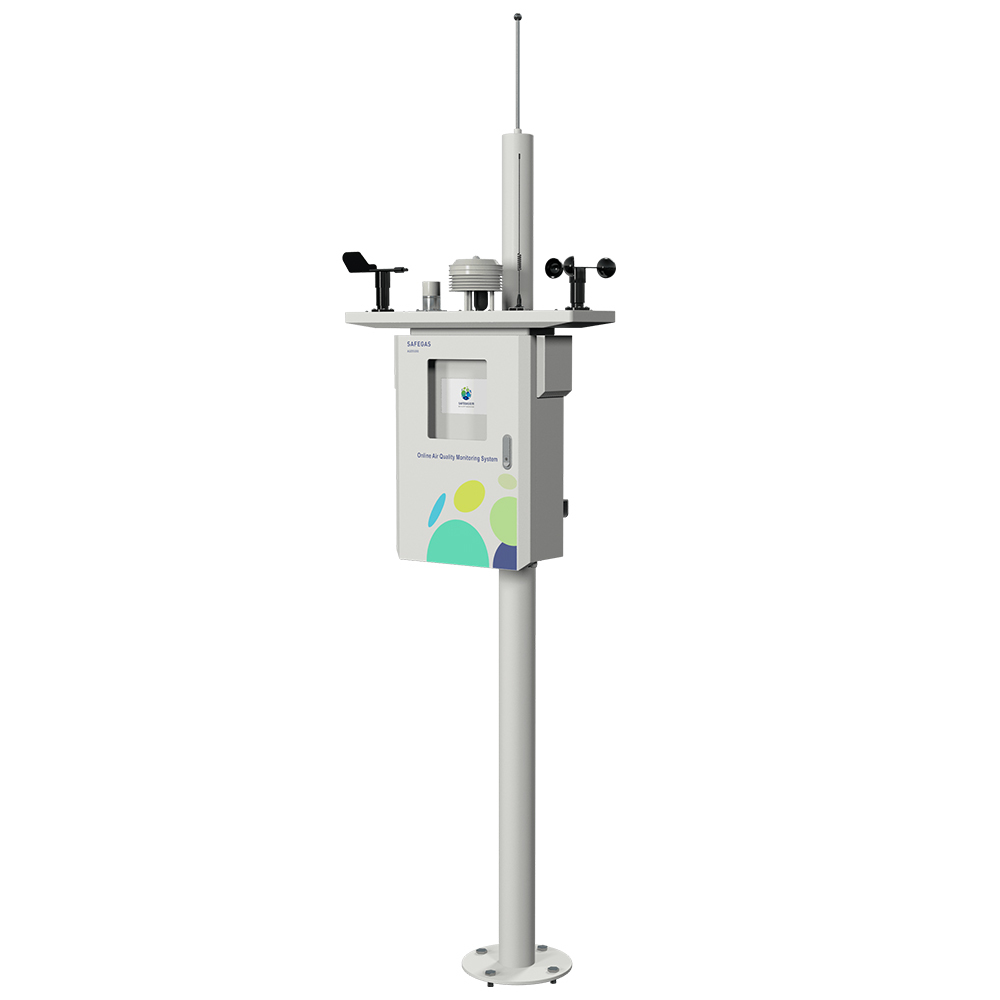

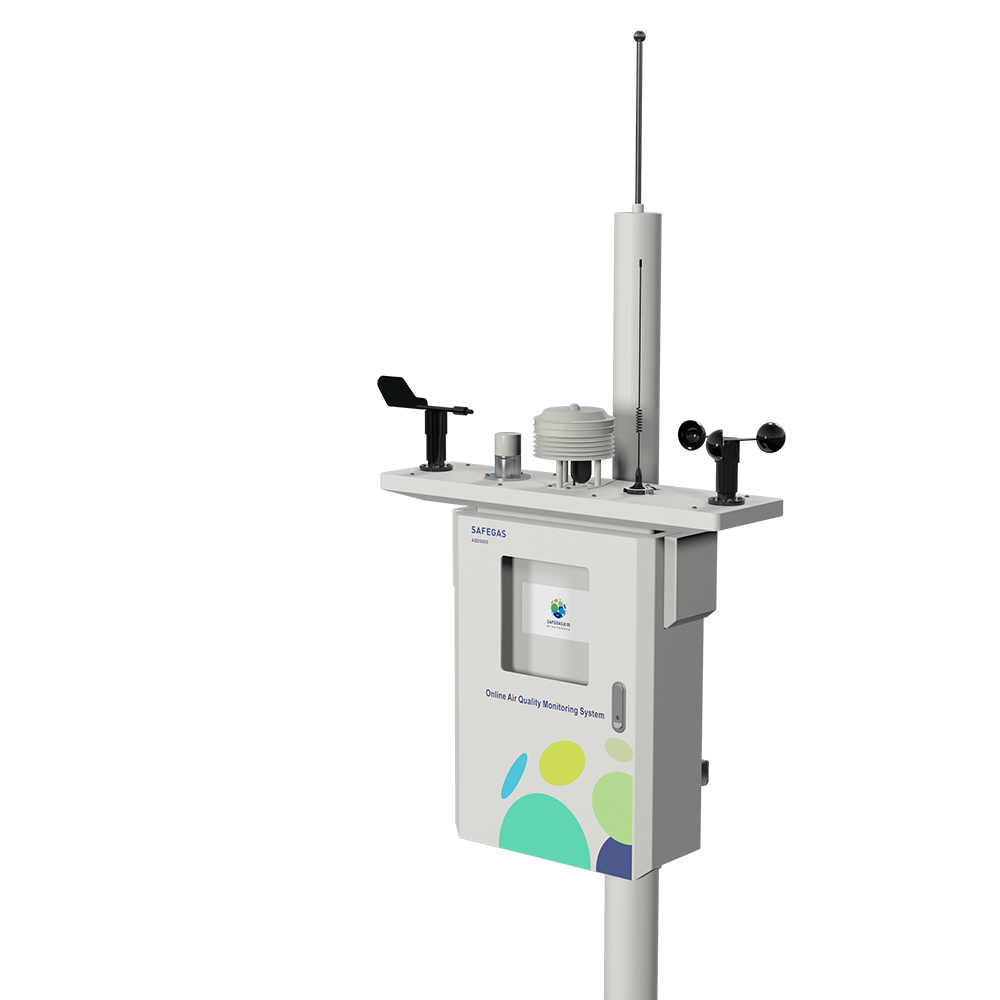

ADQ5000 is a new type of low-cost intelligent monitoring equipment, ideal for environmental monitoring departments to monitor air quality. The AQD5000 air quality monitoring system is widely used in urban air quality monitoring and industrial air emission pollution monitoring.
This system can simultaneously measure various environmental pollution gases, particulate matter and meteorological parameters. It supports RS485 signal transmission with data storage and export functions. Through wireless acquisition terminals, measurement data can be transmitted to cloud platforms in real time and remotely controlled.
1-9 gas parameters simultaneously, with optional particle and meteorological parameter modules
Professional outdoor shield for dust/rain protection, stable operation in extreme temperatures
Standard storage function for at least two years of monitoring data
24/7 uninterrupted operation with real-time data upload and self-diagnosis
RS485 signal output with relay signal support
15 years gas detection expertise, world-class sensors, third-party verified results
| Gas Parameters |
Measurement: Ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC Range: 0-1000ppb, 0-1000ppb, 0-1000ppb, 0-5ppm, 0-20ppm, 0-5ppm Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm, 0.001ppm, 0.001ppm Principle: Electrochemical, infrared, PID photo ionization Accuracy: ±3% FS Response Time: ≤30S |
|---|---|
| Particle Parameters |
Measurement: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP Range: 0-1000ug/m³, 0-5000ug/m³ Resolution: 1ug/m³ Principle: Laser principle Response Time: ≤30S |
| Meteorological Parameters |
Measurement: Temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise Range: -40°C~+120°C, 0~99%RH, 0~20m/s, 8 directions, 0~120Kpa, 0~200,000 Lux, 30dB~130dB Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 piece, 1 Kpa, 1Lux, 1dB Principle: Thermocouple, mechanical |
| Output Signal | RS485, relay, 4G DTU (optional), LORA (optional) |
| Sampling Method | Pump suction |
| Pump Flow Rate | 0.5L/min (gas); 1.8L/min (particles/dust) |
| Display | 7-inch color touch screen |
| Power Supply | 220VAC, 0.1A |
| Working Current | <100mA (Max) |
| Operating Temperature | -10℃~55℃ |
| Operating Humidity | 0-95%RH (non-condensing) |
| Alarm Type | Sound and light alarm (optional) |
| Product Shell | Anti-corrosion, sun protection, anti-collision |
| Product Size | 480×580×163mm (excluding external sensors and mounting brackets) |

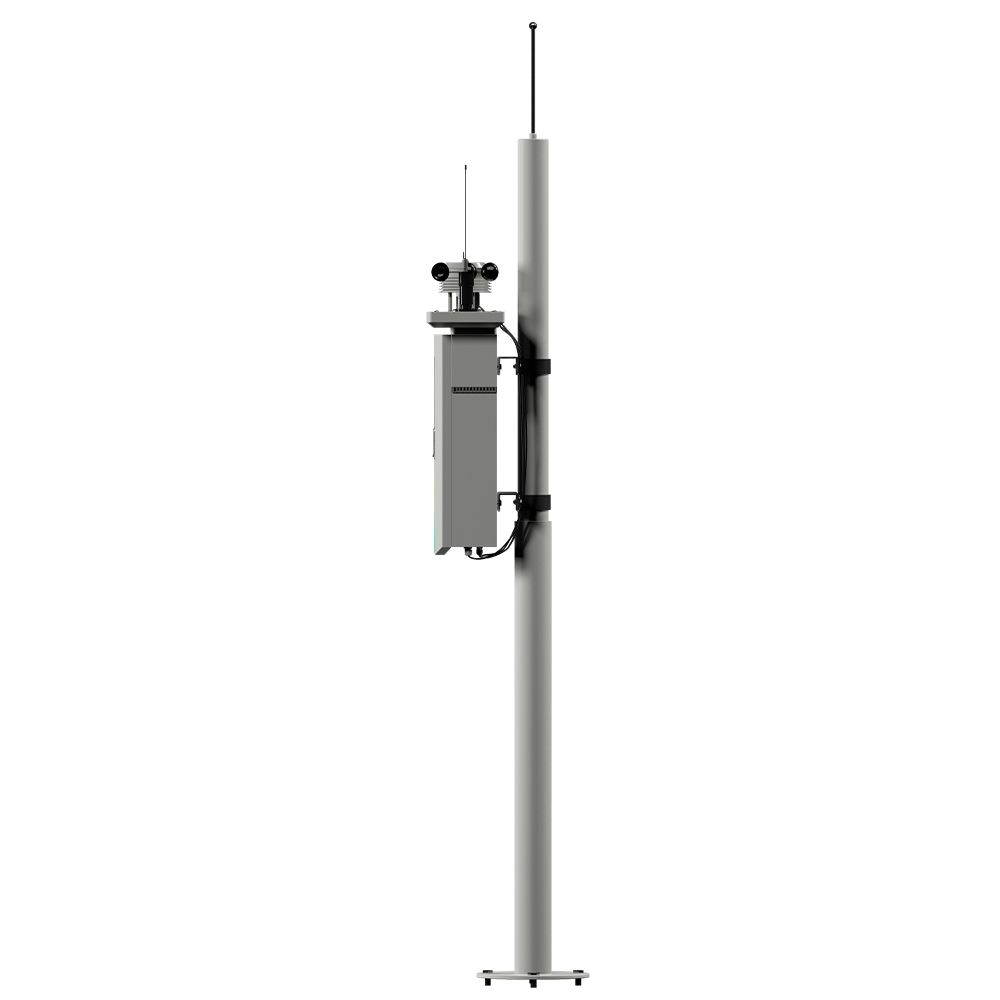

| Installation | Ceiling, wall-mounted |
| Product Weight | 18kg |
| Warranty | 12 months |
AQD5000 is an online air quality and environmental monitoring system designed for comprehensive environmental assessment.
Full control from design to production with over 100 independent patents and 7×24h customer service
25 years of gas detection industry experience with professional technical support
ISO9001 and ISO14001 certified with strict quality management systems
IECEx and ATEX explosion-proof certified for hazardous area applications
Imported sensors and ICs for enhanced accuracy and extended service life
3-day delivery for orders under 10 pieces, 15 days for orders over 100 pieces
