| Nguồn gốc: | TRUNG QUỐC |
|---|---|
| Hàng hiệu: | SAFEGAS |
| Chứng nhận: | ATEX/EMC/IECEX |
| Số mô hình: | Micmeta |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Thùng carton (22*16*11cm) |
| Thời gian giao hàng: | 3 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 3000 miếng mỗi tháng |
| Giờ làm việc: | Thời gian chờ 24h, thời gian sạc <6h | Phương pháp làm việc: | Khuếch tán |
|---|---|---|---|
| Chứng nhận (quy luật EU): | 2004/34/EU (ATEX) | Nền tảng hiệu chuẩn: | Các hoạt động sửa đổi, kiểm tra chức năng và hiệu chuẩn có thể được thực hiện trên trạm nối DKM-MicM |
| Truyền không dây: | Chức năng truyền Bluetooth (tùy chọn), chức năng truyền Lora (tùy chọn) | Độ phân giải: | 1%LEL 1PPM 0,1PPM 0,1%VOL |
| Phạm vi: | 0-100%LEL CO 0-1000PPM H2S 0-100PPM O2 0-30%VOL | Ắc quy: | Pin lithium có thể sạc lại 3.7V, dung lượng pin 2300mA |
| Thời gian trả lời (T90): | ≤30s | Lớp bảo vệ: | IP66/IP68 |
| Tự động kiểm tra và hiệu chỉnh sau khi bật nguồn: | Bao gồm tự động kiểm tra, hiệu chuẩn, tự động về 0, giá trị tối đa (MAX), giá trị tối thiểu (MIN), g | Khí được phát hiện: | LEL CO H2S O2 |
| Cân nặng: | 240g (với pin lithium) | Hồ sơ dữ liệu: | 1000 bộ bản ghi dữ liệu và 100 bộ bản ghi sự kiện |
| Làm nổi bật: | ATEX portable gas detector,coal mine toxic gas alarm,combustible gas safety monitor |
||

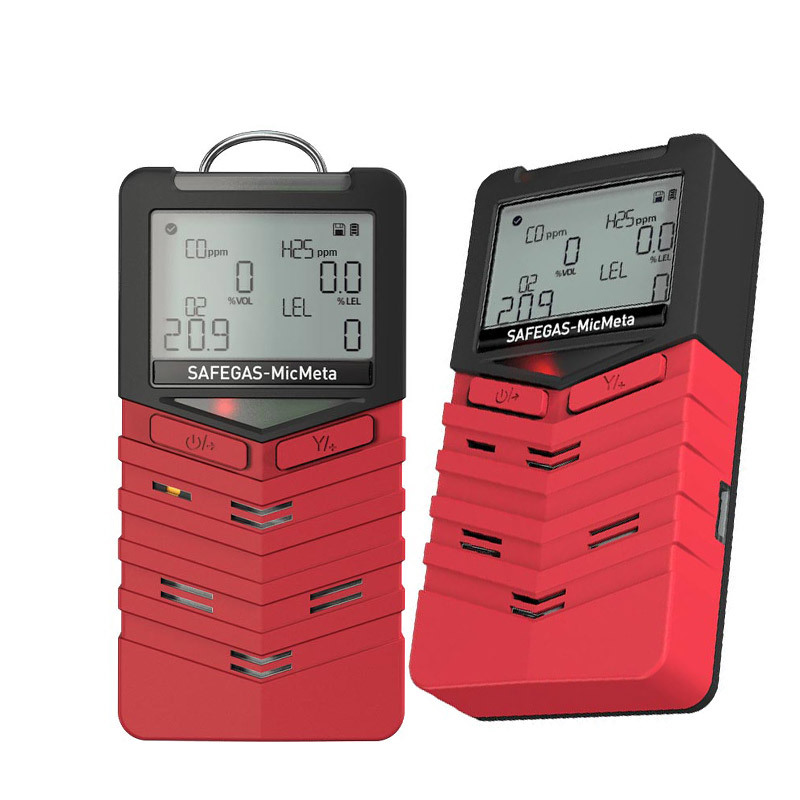

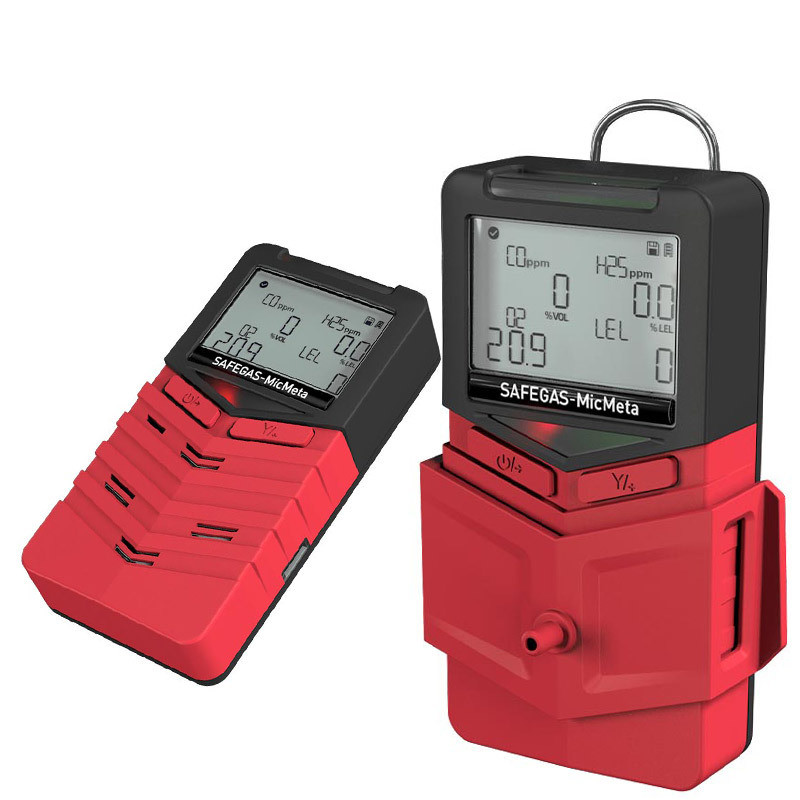

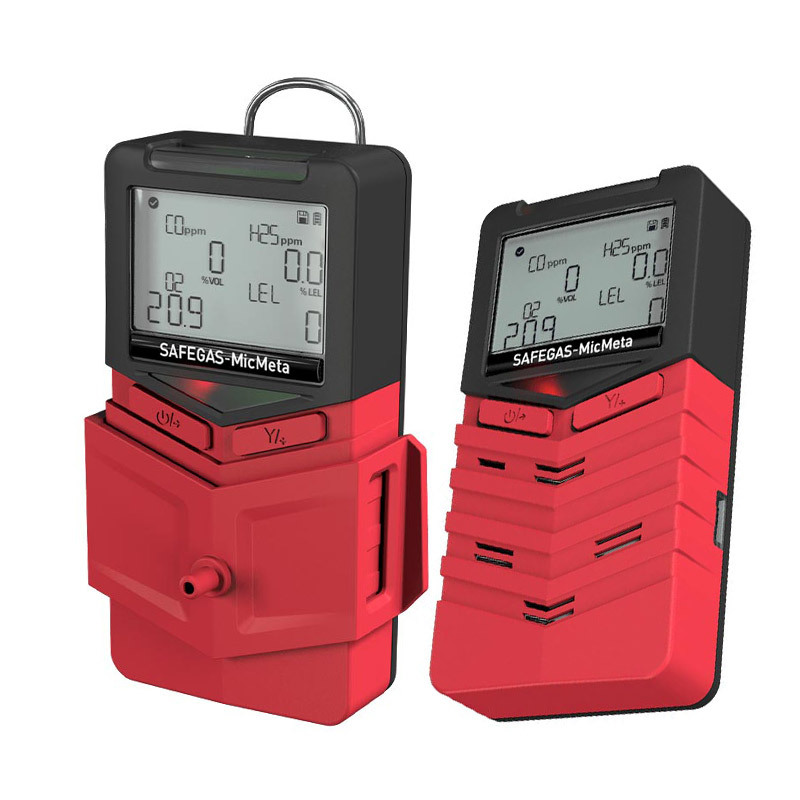

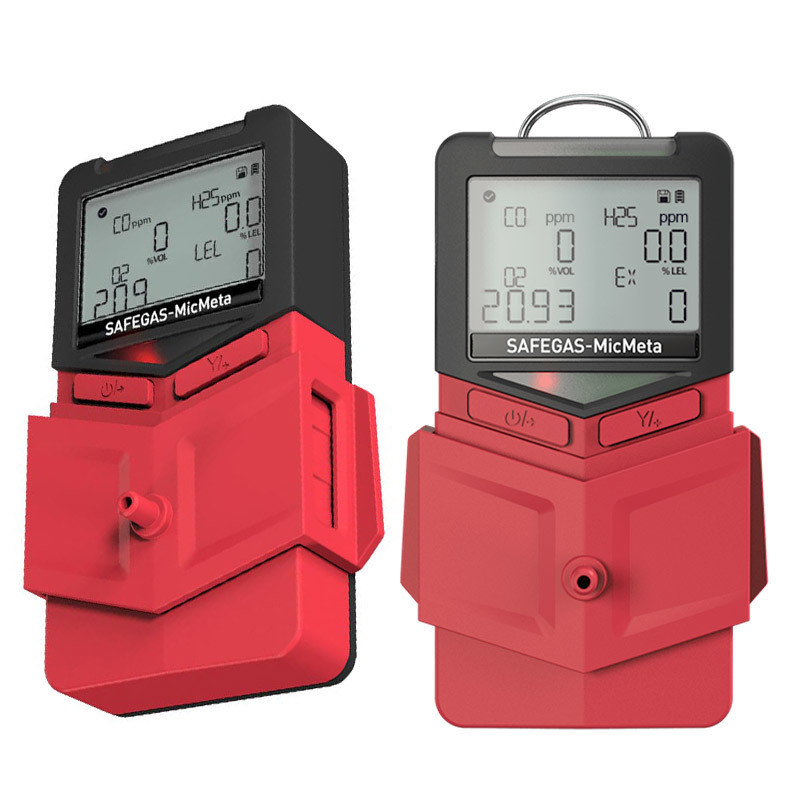

Portable multi model LEL CO H2S O2 gas detector with bump test and calibration
MicMeta is a multi-gas detector that has been certified by IECEx, ATEX, and EMC. It's lightweight and compact with standard gas types including multi 4 (CO H2S O2 LEL) gases and support for hundreds of selectable gases. Features include standard man-down alarm and data logging function, with optional Lora and Bluetooth wireless data transmission for easy data access.
| Parameter | Specification |
|---|---|
| Sampling method | Diffusion |
| Gas type | LEL CO H2S O2 |
| Measure range | 0-100%LEL CO 0-1000PPM H2S 0-100PPM O2 0-30%VOL |
| Resolution | 1%LEL 1PPM 0.1PPM 0.1%VOL |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor) |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86~106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
